Opening Outer Gatherer Sheets

NOTE: Row units must be in floating position before opening outer gatherer sheets.

Raise row-crop head to maximum height and lower hydraulic cylinder safety stop.

Pull out spring locking pin (A) and drilled pin (B) at rear of gatherer to lower outer gatherer point to ground.

Pull two spring locking pins (C), one at rear sheet and one at front of sheet.

Swing up gatherer sheet (D).

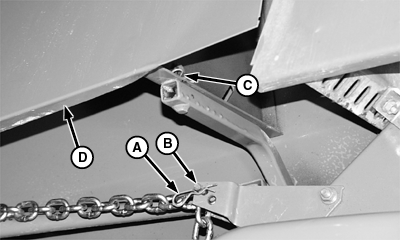

H63294


A-Locking Pin
B-Drilled Pin
C-Locking Pins
D-Gatherer Sheet

AG,OUO1035,2044 -19-24MAR00-1/1
