Adjusting Outer Gatherer Points Up or Down

Start with first adjustment, proceeding to second or third, if necessary, to obtain correct height.

Raise row-crop head to maximum height and lower hydraulic cylinder safety stop.

Shutoff engine, set parking brake and remove key.

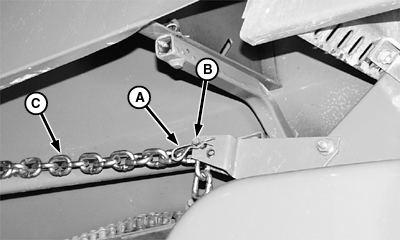

1. At rear outer gatherer sheet, remove spring locking pin (A) and reposition drilled pin (B) in hole of support chain bracket. Secure with spring locking pin.

2. At rear of outer gatherer sheet, reposition support chain (C) using different link.

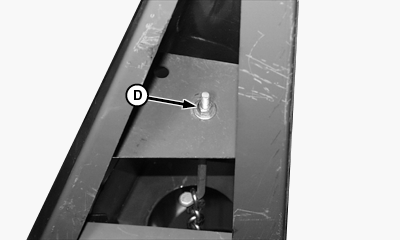

3. Turn inner and outer nut (D) to adjust height. Tighten nuts.

A-Spring Locking Pin
B-Drilled Pin
C-Support Chain
D-Nut
