Adjusting Outer Gatherer Points In or Out

NOTE: In downed crop conditions, or when changing row spacing, it may be necessary to move gatherer points in.

Outer gatherer points may be adjusted to an "in" or "out" position.

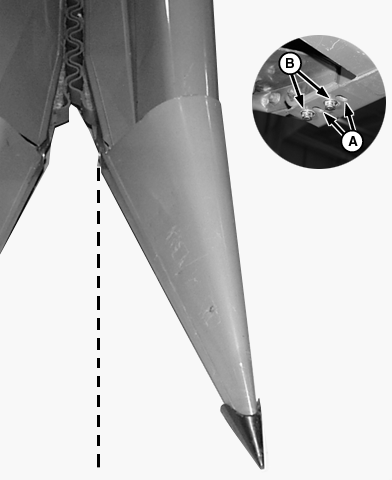

Attach points to hinge pins at holes (A) for "in" position and at (B) for "out" position.

A-In Position Holes
B-Out Position Holes

AG,OUO1035,2046 -19-24MAR00-1/1
