Adjusting Row Units for Floating or Rigid Operation

Raise row-crop head to maximum height and lower hydraulic cylinder safety stop.

NOTE: Soybeans require row units to be in the floating position. Standing maize and sunflowers require row units to be in the rigid position.

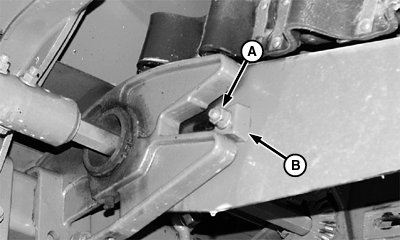

Loosen nut (A) and drive wedge (B) (on both sides of row unit) forward for float position or rearward for rigid operation.

Tighten nut (A).

Repeat for each row unit.

A-Nut
B-Wedge

AG,OUO1035,2047 -19-24MAR00-1/1
