Adjusting Row Unit Drive Chains

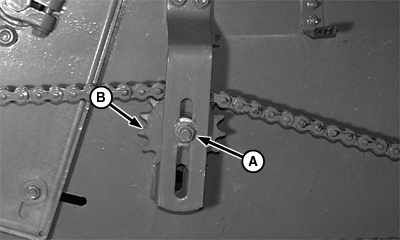

Loosen nut (A).

Move tightener sprocket (B) up or down until chain will operate without climbing or jumping sprockets. Tighten nut.

Idler can be positioned on either top or bottom of chain to compensate for chain wear.

Repeat for left-hand drive chain.

A-Nut
B-Sprocket
