Every 10 and 50 Hours

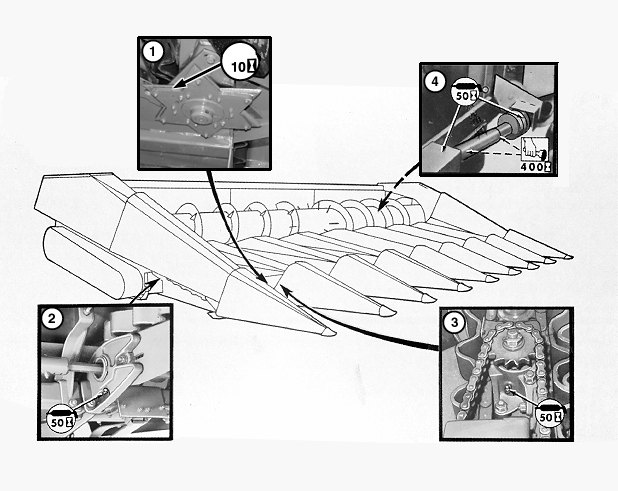

H63645

1. Check rotary knives for proper adjustment.

2. Lubricate row unit pivots.

3. Lubricate rotary knife bearing.

4. Grease Header Drive Shafts (both sides) row-crop heads (S/N - 685XXX) (SideHill 6620 and SideHill 9500).

  • Disconnect drive shaft from feeder house.
  • Align access holes in shaft shields with one of the grease fittings on the drive shaft.
  • Lubricate.
  • Rotate shaft 180 degrees and lube second fitting on drive shaft.

AG,OUO1035,2101 -19-17APR00-1/1
