Detaching Row-Crop Head (S/N 685XXX - ) from 50 Series Combines

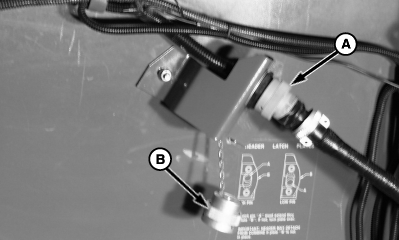

Disconnect wiring harness (A) and install dust cap.


A-Wiring Harness
B-Dust Cap

H64129

AG,OUO1035,688 -19-07JUN99-1/6

Plug wiring harness (A) into storage plug (B).


A-Wiring Harness
B-Storage Plug

H51852

AG,OUO1035,688 -19-07JUN99-2/6

IMPORTANT: Make sure that the drive shaft quick lock collar locks fully on the storage pin.

Disconnect drive shafts (A) and place in storage position.


A-Drive Shafts

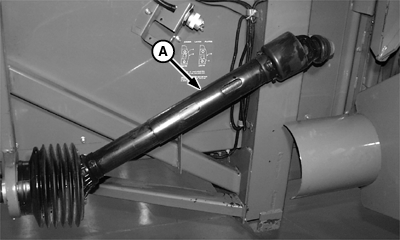

H63287

Left-Hand Drive Shaft

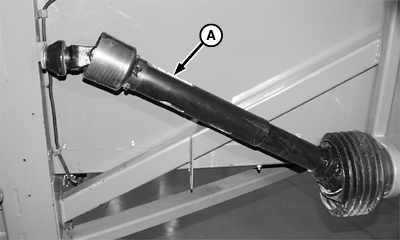

H63288

Right-Hand Drive Shaft

AG,OUO1035,688 -19-07JUN99-3/6

Sound horn, start engine and raise feeder house, lifting row-crop head all the way up.

Shut off engine, remove key, and set parking brake.

Lower safety stop (A) onto hydraulic cylinder rod.


A-Safety Stop

TS696
H57965

AG,OUO1035,688 -19-07JUN99-4/6

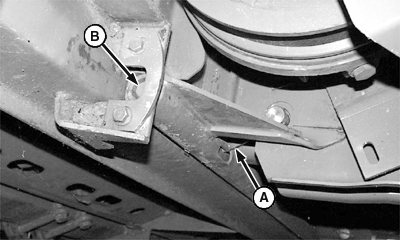

Pivot stop handle (A) up to let lock pin (B) unlock from header.


A-Handle
B-Lock Pin

H58159

AG,OUO1035,688 -19-07JUN99-5/6

Lower feeder house until row-crop head is on the ground and pivot blocks (A) are free.

Drive combine slowly rearward until feeder house is clear of row-crop head.


A-Pivot Blocks

H58157

AG,OUO1035,688 -19-07JUN99-6/6
