Header Calibration

The header calibration must be performed when a header is first used with a combine or when any of the sensors are replaced. The Height Resume sensor on the feeder house must be operating.

Prepare the header for calibration:

  • Attach header to combine and connect header harness to combine harness.
  • Start combine and drive onto a level firm surface.

AG,OUO1035,690 -19-09JUN99-1/10

Press the diagnostic switch. DIA will appear on the triple display tachometer.

H54583

AG,OUO1035,690 -19-09JUN99-2/10

Press the calibration switch. CAL and conc will appear on the tachometer.

H54595

AG,OUO1035,690 -19-09JUN99-3/10

Press the up or down arrow keys until CAL and hdr appears on the tachometer.

H54596

AG,OUO1035,690 -19-09JUN99-4/10

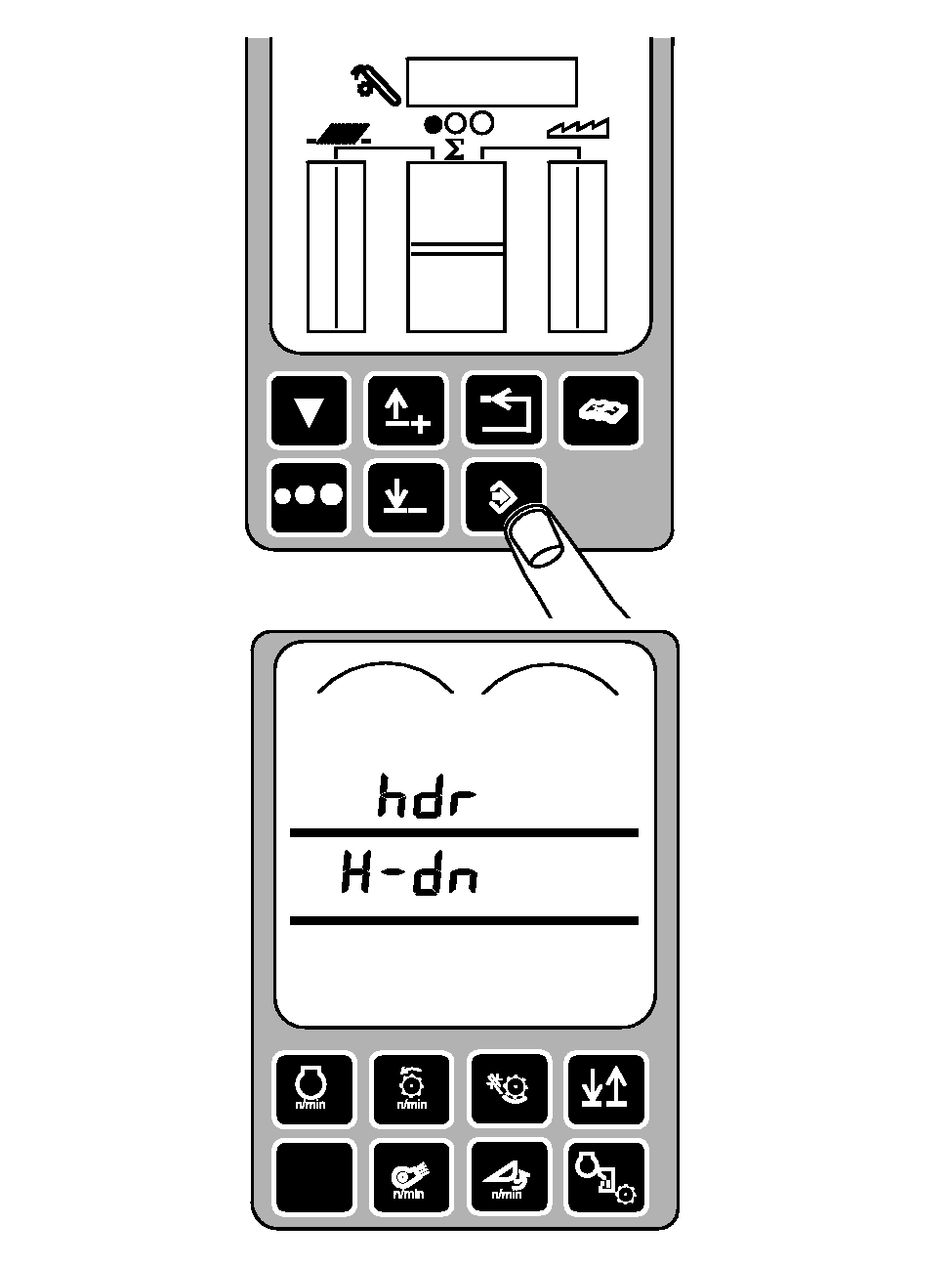

Press the enter switch to access the header calibration mode. hdr and H-dn will now appear on the tachometer.

H54597

AG,OUO1035,690 -19-09JUN99-5/10

Establish sensor minimum setting.

IMPORTANT: The row-crop head must be level before calibrating.

Lower and manually level the head with the tilt switch (A) (if equipped with CONTOURMASTER ™ ) until it rests flat on the ground. The left- and right-hand sides of the header should contact the ground at the same time as the header is lowered.


A-Header Raise/Lower Switch

H54598

CONTOURMASTER is a trademark of Deere & Company

AG,OUO1035,690 -19-09JUN99-6/10

Press the calibration switch. hdr and H-UP will be displayed on the tachometer.

H54599

AG,OUO1035,690 -19-09JUN99-7/10

Establish sensor maximum setting.

Raise the header completely with the header raise/lower switch (A).


A-Header Raise/Lower Switch

H54598

AG,OUO1035,690 -19-09JUN99-8/10

NOTE: If there are calibration errors, they will be displayed instead of EOC. Refer to calibration codes later in this section.

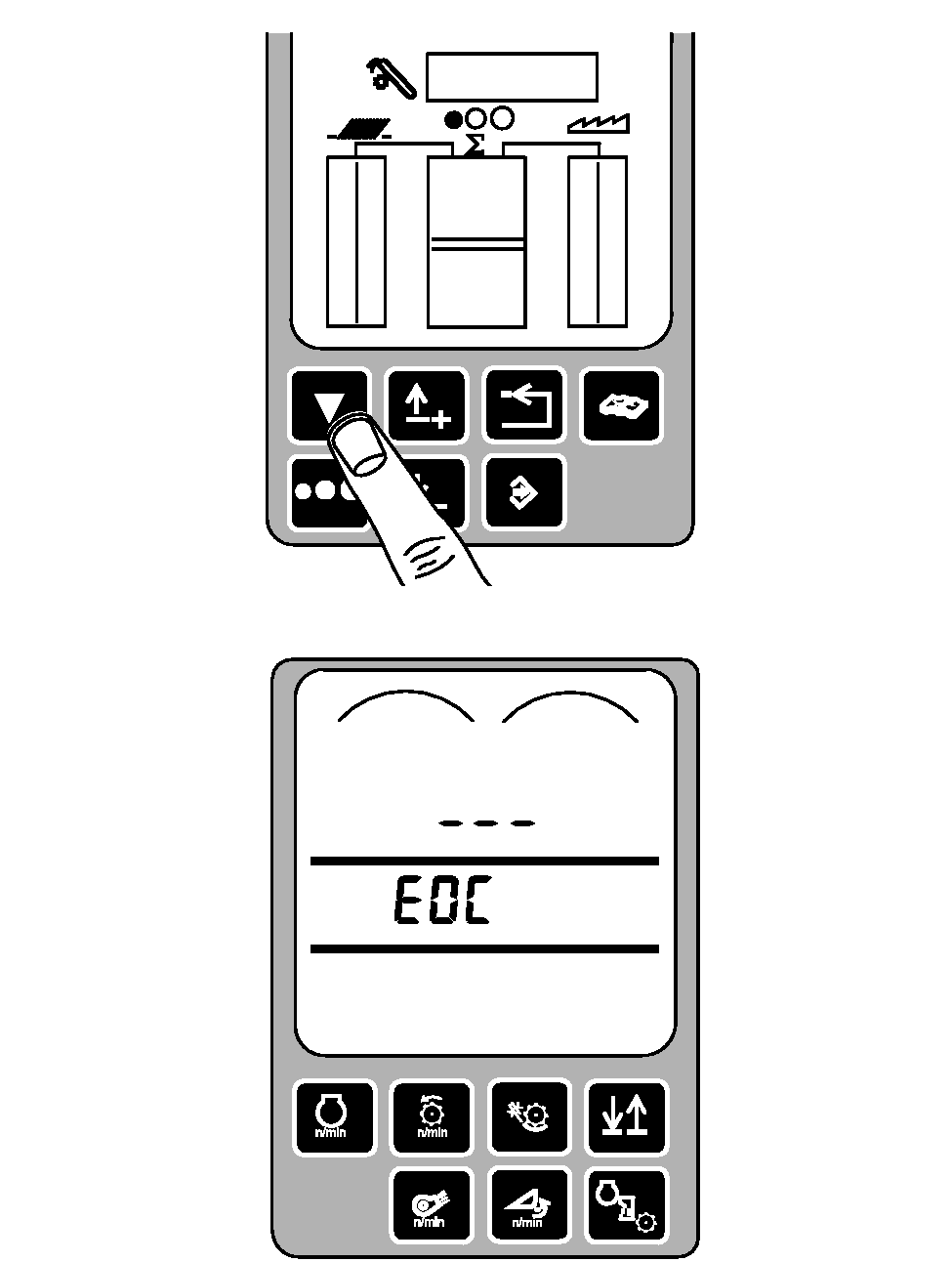

Press the calibration switch. EOC will be displayed on the tachometer.

H54600

AG,OUO1035,690 -19-09JUN99-9/10

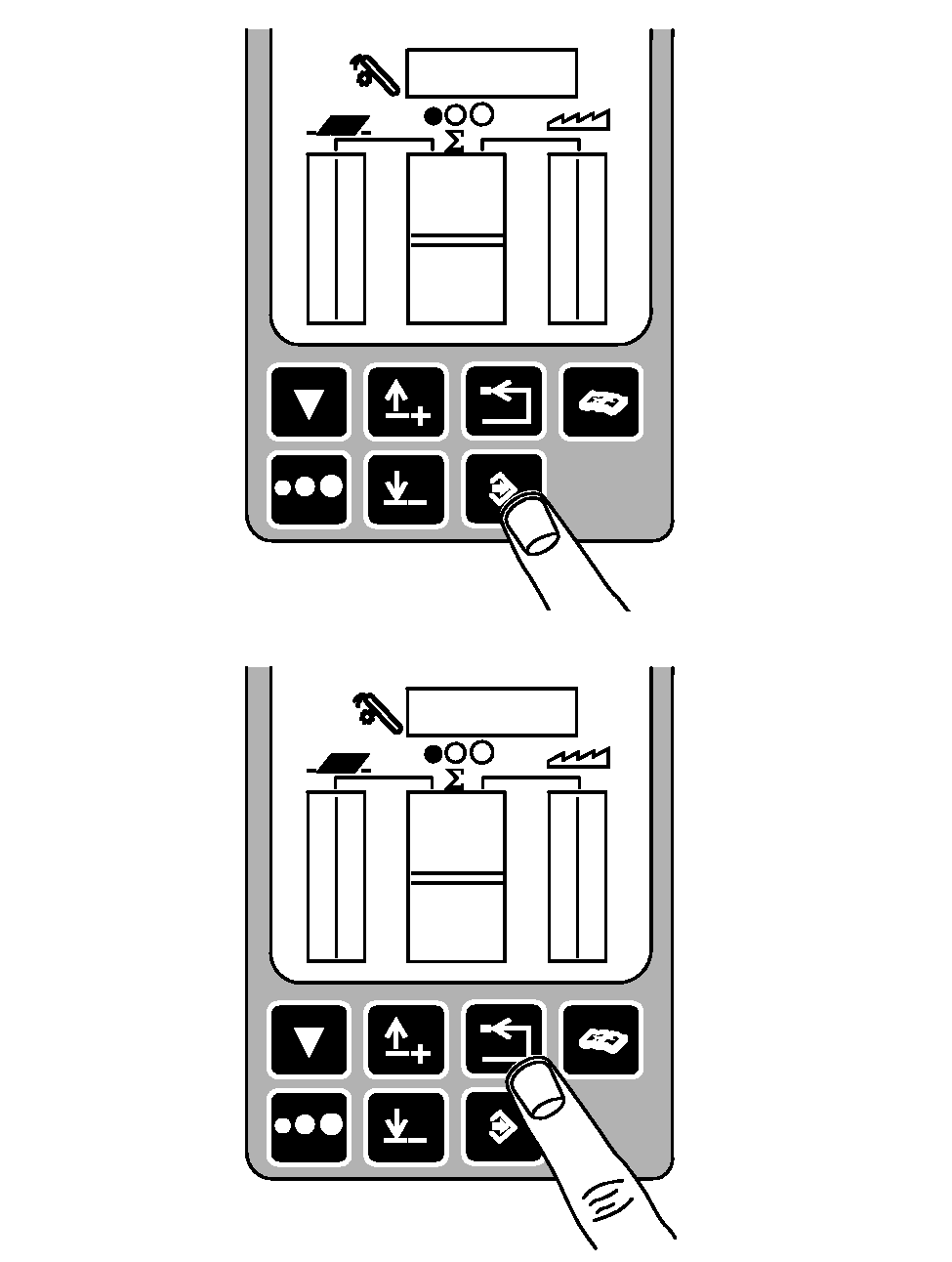

Press the enter switch to save the calibration values or press the back arrow switch to abort the calibration (and not save values).

Now you will be at the main calibration menu.

Press the back arrow switch to return to normal operation.

H54601

AG,OUO1035,690 -19-09JUN99-10/10
