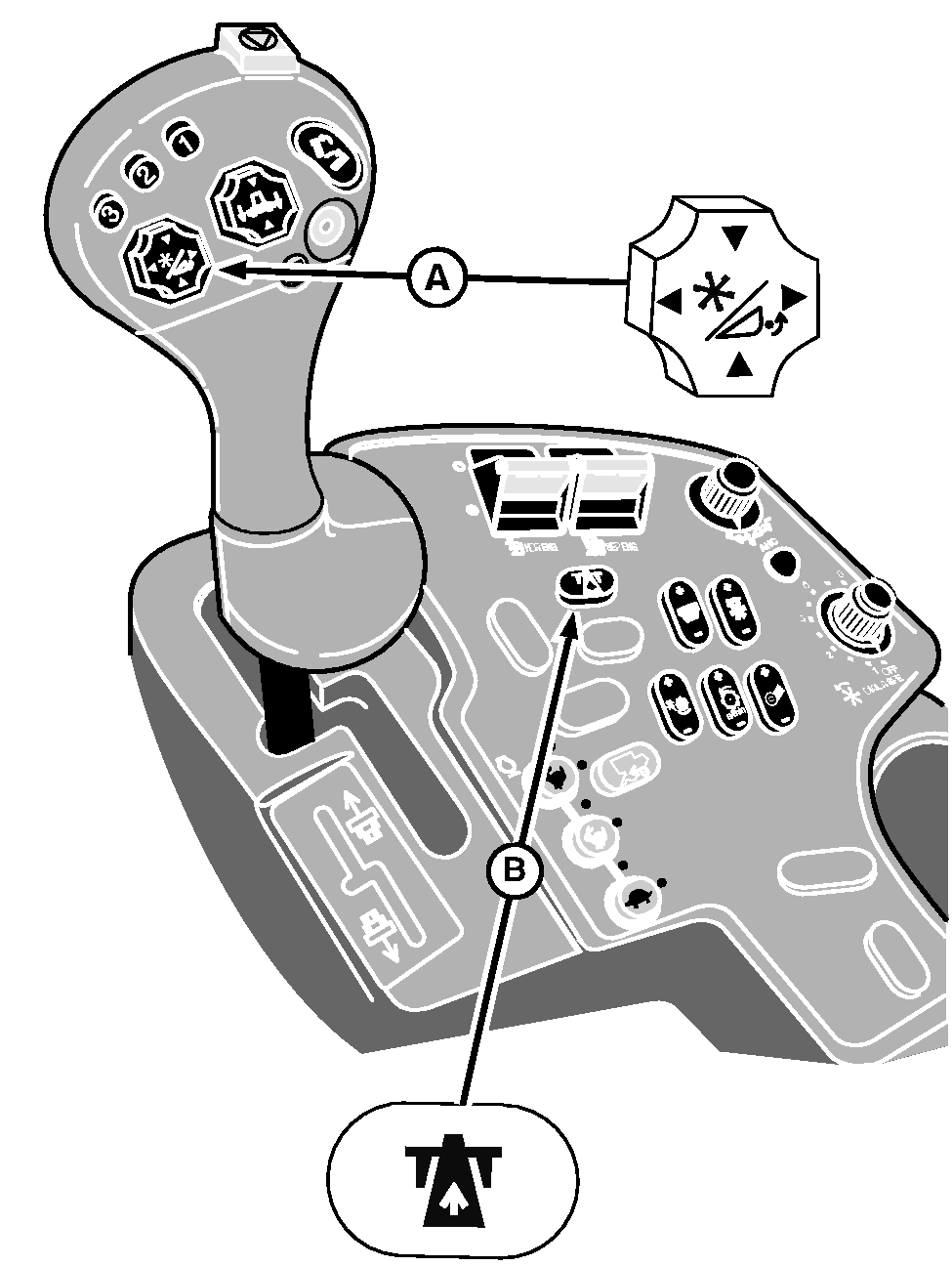

50 Series Combines with Variable Speed Feeder HouseThe corn head drive speed is varied by changing the speed of the lower feeder house shaft. Lower feeder house shaft speed is changed with the reel switch (A) located on the multi-fuction handle. To operate reel switch, the road transport disconnect switch (B) must be in field position. Push and hold the bottom of switch to increase speed, push and hold top of switch to decrease speed. Engine and header must be running to adjust speed.
|
|
AG,OUO6075,197 -19-01JUN00-1/1 |
