Active Header Control (AHC) Display

Use ACTIVE HEADER CONTROL (AHC) ™ setpoint in the lower 1/3 of bar graph. (See ACTIVE HEADER CONTROL (AHC) ™ Operation Section of this Manual). This position provides the maximum use of the float range, the lowest cut, and the best feeding.

For loose soil or muddy conditions, operate with a set point in the middle to the top of the bar graph

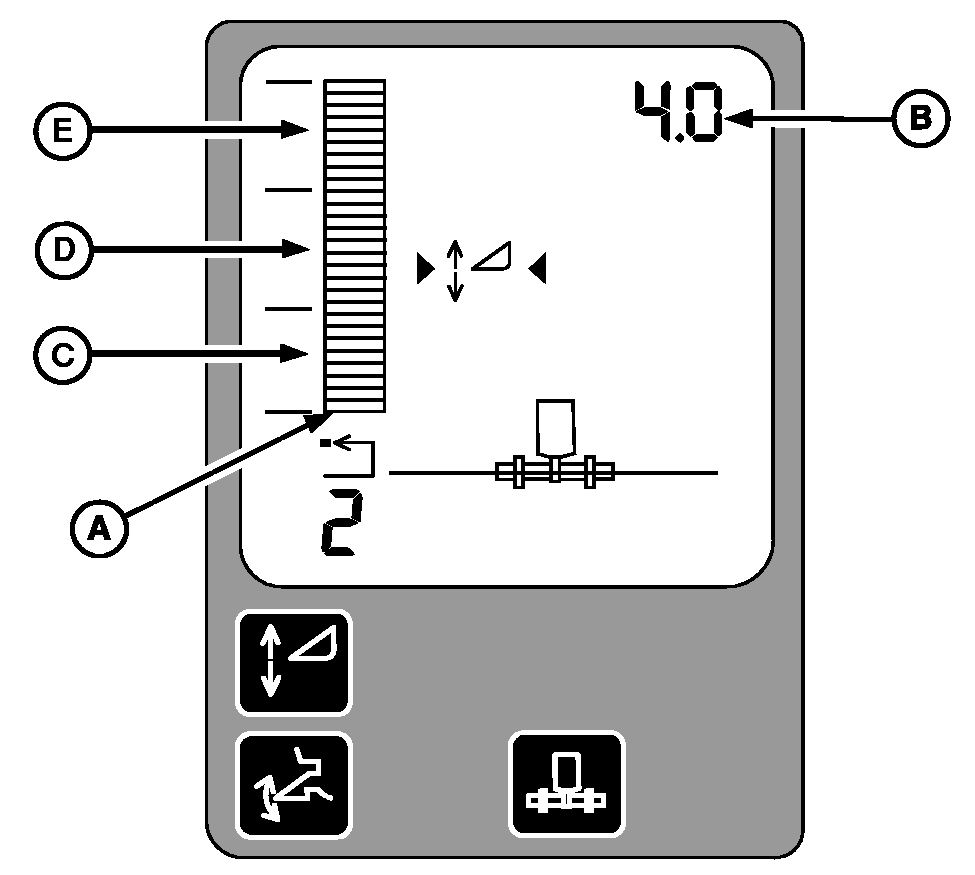

A-Bar Graph
B-Display
C-Dry Conditions
D-Soft Conditions
E-Wet Conditions

ACTIVE HEADER CONTROL (AHC) is a trademark of Deere & Company

AG,OUO6075,203 -19-01JUN00-1/1
