Mechanical Range Indicator (If Equipped)

The range indicator (A), located on the left-hand side of the row-crop head, lets the operator know at a glance where the row units are within their 152 mm (6-in.) float range. The numbers, located to the right of the red range indicator ball, indicate in inches the position of the highest row unit.

For example, if the indicator ball is on "6," the highest row unit is also at the bottom of the 152 mm (6-in.) float range. This would indicate to the operator to lower the header if the combine is not equipped with DIAL-A-MATIC ™ or ACTIVE HEIGHT CONTROL ™ header height control.

If the indicator ball is on "0," the highest of all the row units is at the top of the 152 mm (6-in.) float range. This would indicate to the operator to raise the header if the combine is not equipped with DIAL-A-MATIC ™ or ACTIVE HEIGHT CONTROL ™ header height control.

Normally, the red indicator ball should be positioned approximately on number "2," to achieve a low and consistent cutting height with respect to the ground. For loose soil conditions or mud, the "4" position may give better performance.

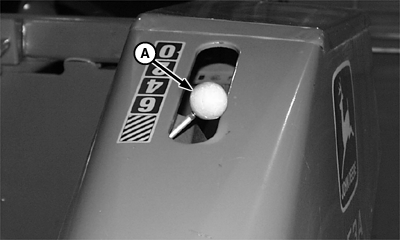

A-Range Indicator

DIAL-A-MATIC is a trademark of Deere & Company.
ACTIVE HEIGHT CONTROL is a trademark of Deere & Company.

AG,OUO6075,204 -19-01JUN00-1/1
