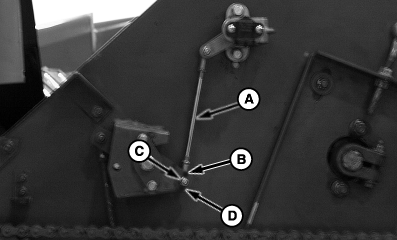

ACTIVE HEADER CONTROL (AHC) Sensor Adjustment™The linkage is installed in hole (C) on the swing arm at the factory. Increase sensor voltage by moving the linkage to hole (D). Decrease the voltage by moving to hole (B). The voltage can also be changed by adjusting the length of the linkage (A). Decrease the length to increase voltage. Increase the length to decrease voltage.
|
|
|
ACTIVE HEADER CONTROL (AHC) is a trademark of Deere & Company | AG,OUO6075,208 -19-02JUN00-1/1 |
