Row-Unit Slip Clutch

All row-crop heads are protected by two row-unit clutches (C).

They are located on the right-hand end and left-hand end of each row unit drive shaft, outside the respective end sheets.

To access row-unit clutches remove spring locking pins (A) and lower cover (B).

When replacing slip clutch springs or jaws, the four bolts used to compress the spring must be tight. Tighten nuts in the row unit clutch to specification.

Specification

Auger Slip Clutch Mounting Bolts -Torque 110 N·m  (80 lb-ft)

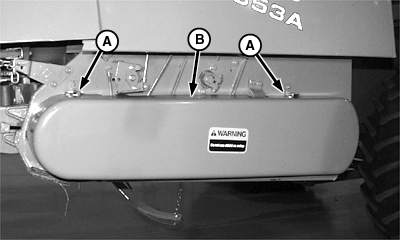

A-Spring Locking Pins
B-Cover

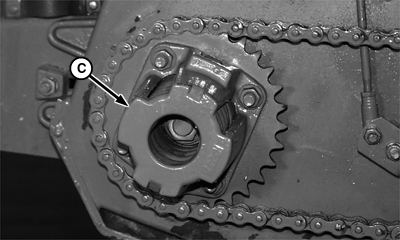

C-Row-unit Clutch

H63328
H63296

AG,OUO6075,211 -19-05JUN00-1/1
