Header Warning Light Bulb Replacement

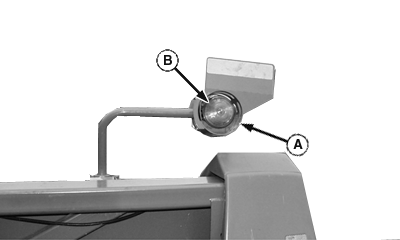

Insert a flat-blade screwdriver through slot in shield (A).

Carefully, pry-off lens (B) from light.

Push bulb in and turn to remove.

Install new bulb.

Press lens back onto light housing.

A-Shield
B-Lens

CRNHD,90SE,97G -19-14AUG97-1/1
