Hydraulic Cylinder Safety Stop

CAUTION: When working under the row-crop head, always place the hydraulic cylinder safety stop in safety position to prevent header from lowering.

1. Start engine, raise feeder house and fully extend hydraulic cylinder to place safety stop in safety position.

2. Shut off engine, set parking brake and remove key.

ROCPHD,50ASE,A -19-15FEB89-1/4

3. (20 Series Combines) Disconnect support chain (A) from safety stop (B) and lower safety stop onto the cylinder rod.

A-Support Chain
B-Safety Stop

ROCPHD,50ASE,A -19-15FEB89-2/4

4. (9000 Series ) Hold handle (A) and release safety stop by removing pin (B) and lifting stop up and in and lowering it down onto the cylinder rod.

A-Handle
B-Pin

ROCPHD,50ASE,A -19-15FEB89-3/4

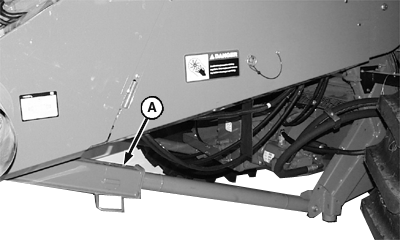

10 Series and 50 Series Combines: Lower safety stop (A) onto cylinder.

After completing work on the row-crop head, place safety stop in storage position.

A-Safety Stop
