Setting Reel Safety Stops

CAUTION: Lower both safety stops when working under or on the reel.

Sound horn, start combine engine and raise reel all the way. Set parking brake, shut off engine and remove key.

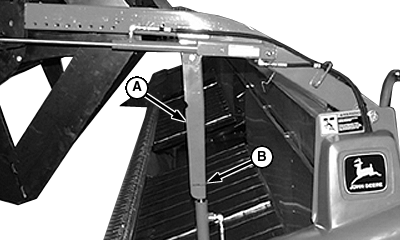

(BOTH ENDS): Lower stop (A) onto cylinder rod. Stop must be snapped over cylinder with lock clip (B).

A-Stop
B-Lock
