Feed Drum Finger Guide and Cap Replacement

CAUTION: Always lower the reel safety stops when working under the reel.

NOTE: The feed drum does not have to be removed to repair shafts, cranks and fingers.

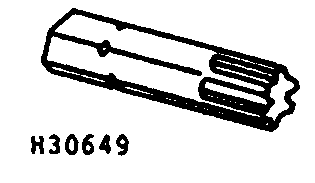

Order JDC-3 from your John Deere dealer. Use driver with 1/4 to 3/8 in. adapter.

Use JDC-3 driver to remove two finger guide screws and remove guide.

Replace worn or damaged parts.

Install guide screws, tighten to specification.

Specification

900CP,SE,R -19-14SEP99-1/1
