Header Warning Light Bulb Replacement

1. Insert a flat-blade screwdriver through slot in shield (B).

2. Carefully, pry-off lens (A) from light.

3. Push bulb in and turn to remove.

4. Install new bulb.

5. Press lens back onto light housing.

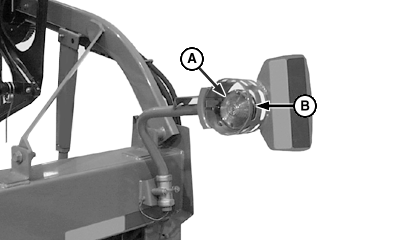

A-Lens
B-Shield

900CP,SE,U97 -19-10SEP99-1/1
