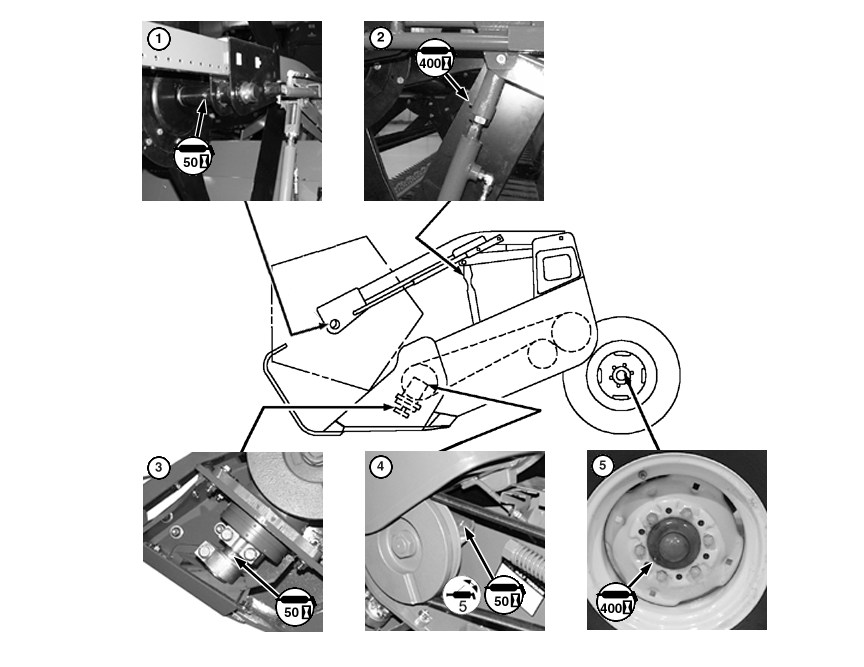

1. (BOTH SIDES): Grease reel shaft housing (5 pumps or until grease protrudes).

2. (BOTH SIDES): Grease reel lift adjustment casting.

3. Grease knife head bearing.

NOTE: It is normal for the knife drive gearbox to operate very warm. DO NOT over grease in an

4. Grease knife drive gearbox (5 pumps every 50 hrs.) .

5. (BOTH SIDES IF EQUIPPED): When working in water and mud, grease at 10 hours. In normal conditions, grease at 400 hours.

AG,OUO6435,331 -19-19AUG99-1/2

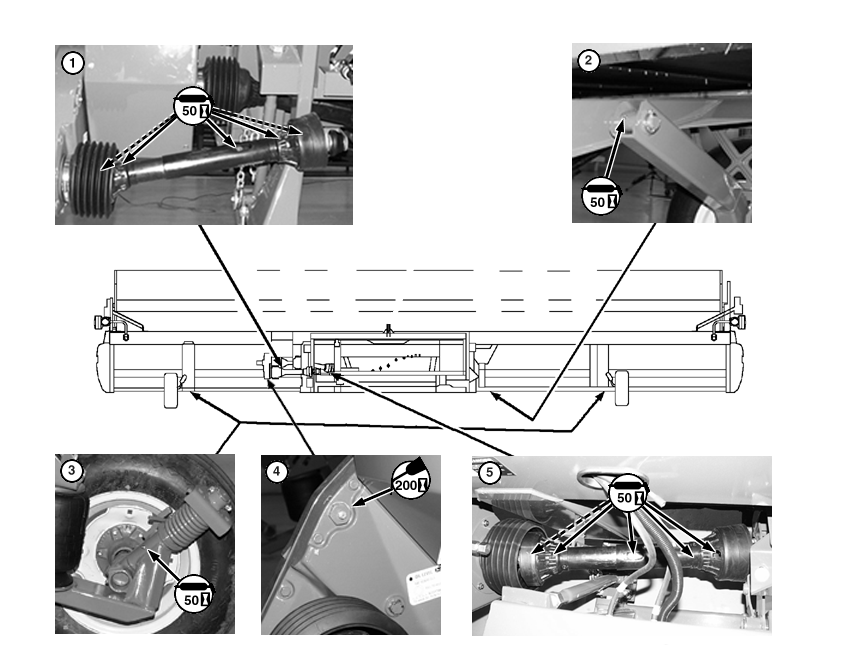

1. Grease telescopic drive shaft U-joints and align holes in shield to grease both spline zerks. Grease shield bearings. Grease six places.

2. (IF EQUIPPED): Grease right-hand transport arm.

3. (IF EQUIPPED) (BOTH SIDES): Grease gauge wheel kingpins.

4. Check draper gearbox every 200 hours, add 85W/90 GL5 Gear Lube as needed

5. Grease telescopic drive shaft U-joints and align holes in shield to grease spline zerk. Grease shield bearings. Grease five places.

AG,OUO6435,331 -19-19AUG99-2/2
