Feed Drum Finger Replacement

1. Remove access hole covers in feed drum.

2. Use 13 mm (1/2 in.) socket on a ratchet. Reach through access hole and remove cap screw (A). Remove broken parts.

3. Install new parts and tighten cap screw to specification.

Specification

Cap Screws -Torque 16 N·m (12 lb-ft)

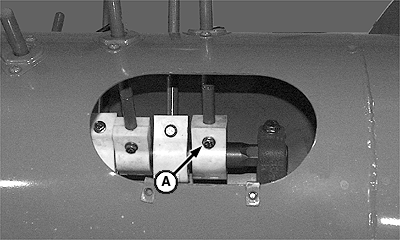

A-Cap Screw

H61988
