Attaching Platform to Combine

NOTE: The Slow Speed Integral Transport System is optional for the 930D and 936D draper platform.

Refer to "TRANSPORT" section to convert Slow Speed Integral Transport System to field positions.

IMPORTANT: Lock pin (A) (both sides) must be positioned in before attaching header. Position pin by sliding stop bolt (B) in and then pivoting it up. If pins are left in the out position, feeder house will be damaged when header is attached.

Drive combine slowly forward until feeder house is centered in platform opening.

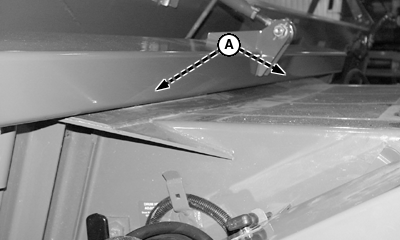

Raise platform, pivot blocks on feeder house must be seated in pockets (A) under top beam of platform.

A-Pockets

OUO6075,0000030 -19-16NOV00-1/9

CAUTION: Set parking brake, shut off engine and remove key. Cracking of hydraulic line fittings to lower feeder house results in an immediate dropping of feeder house and header. To prevent injury, raise feeder house completely and lower safety stop (A) onto hydraulic cylinder rod.

Set parking brake, shut off engine and remove key.

Lower safety stop (A) onto hydraulic cylinder rod.

A-Safety Stop

OUO6075,0000030 -19-16NOV00-2/9

IMPORTANT: Header may detach from combine if latch plate is not in place.

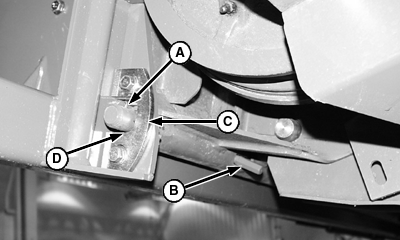

Pivot stop handle (B) down to let lock pin (A) lock into header. The lock pin must extend through latch plate (C). If not, turn plate over. The latch plate must contact surface (D). Tolerances may require that latch plates be installed differently on left-hand and right-hand sides.

A-Lock Pin
B-Stop Handle
C-Latch Plate
D-Surface

OUO6075,0000030 -19-16NOV00-3/9

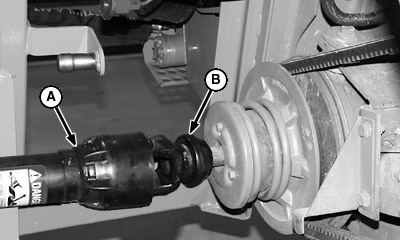

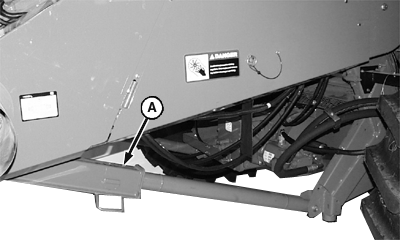

Remove telescopic shaft (A) from storage position and install onto feeder house driveshaft. Make sure quick attach collar (B) locks fully.

A-Telescopic Shaft
B-Quick Attach Collar

OUO6075,0000030 -19-16NOV00-4/9

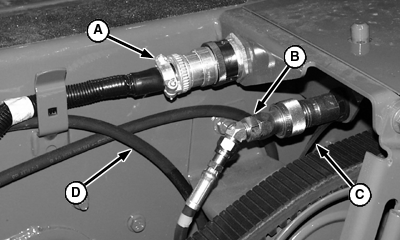

Remove wiring harness (A) from storage position.

Disconnect reel lift hydraulic hose (B) from quick coupler and install dust cap (C) on coupler.

Unfold reel fore/aft hydraulic hose (D) (optional) from storage position.

A-Wiring Harness
B-Reel Lift Hydraulic Hose
C-Dust Cap
D-Reel Fore/Aft Hydraulic Hose

OUO6075,0000030 -19-16NOV00-5/9

NOTE: Wiring harness includes warning light circuit.

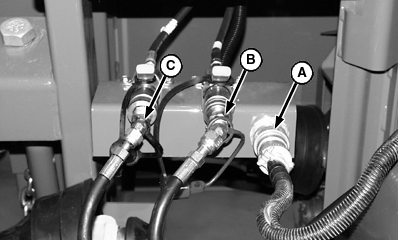

Connect wiring harness (A) to harness on left-hand side of platform.

Remove dust cap and connect reel lift hydraulic hose (B) to coupler.

Remove dust cap and connect reel fore/aft hydraulic hose (C) (optional) to coupler.

Open coupling valves.

Connect dust caps together.

A-Wiring Harness
B-Reel Lift Hydraulic Hose
C-Reel Fore/Aft Hydraulic Hose

OUO6075,0000030 -19-16NOV00-6/9

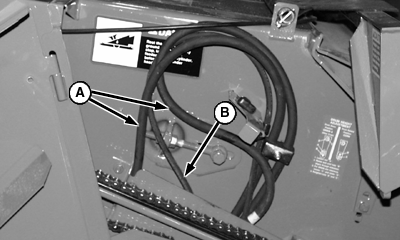

Remove reel fore/aft hydraulic hose (B) (optional) and reel drive hydraulic hoses (A) from storage position on right-hand side of feeder house.

A-Reel Drive Hydraulic Hose
B-Reel Fore/Aft Hydraulic Hose

OUO6075,0000030 -19-16NOV00-7/9

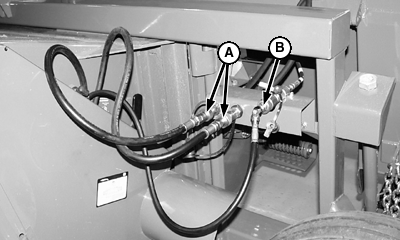

Remove dust caps and connect reel drive hydraulic hoses (A) to couplers on right-hand side of platform.

Remove dust cap and connect reel fore/aft hydraulic hose (B) (optional) to coupler.

Open coupling valves.

A-Reel Drive Hydraulic Hose
B-Reel Fore/Aft Hydraulic Hose

OUO6075,0000030 -19-16NOV00-8/9

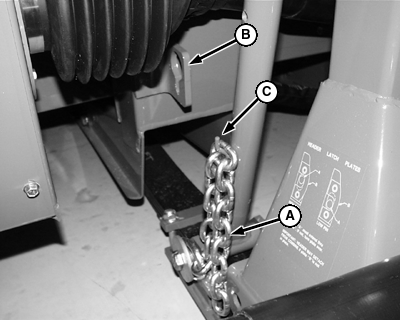

(BOTH SIDES): Remove lockout chain (A) from bracket (B) and retain on storage hook (C) as shown.

A-Lockout Chain
B-Bracket
C-Storage Hook

OUO6075,0000030 -19-16NOV00-9/9
