Lubricate Draper Main Gearbox

NOTE: Approximate Gearbox Capacity 5.6 L (6 qt)

NOTE: Draper should be mounted to combine and cutterbar on ground when checking gearbox.

Add John Deere SAE 80W/90 Gear Lubricant or an equal GL-5 multipurpose type gear oil to main draper gearbox as needed.

Remove plug (A) and (B).

Add oil until oil begins to flow out level port (B).

Reinstall plugs.

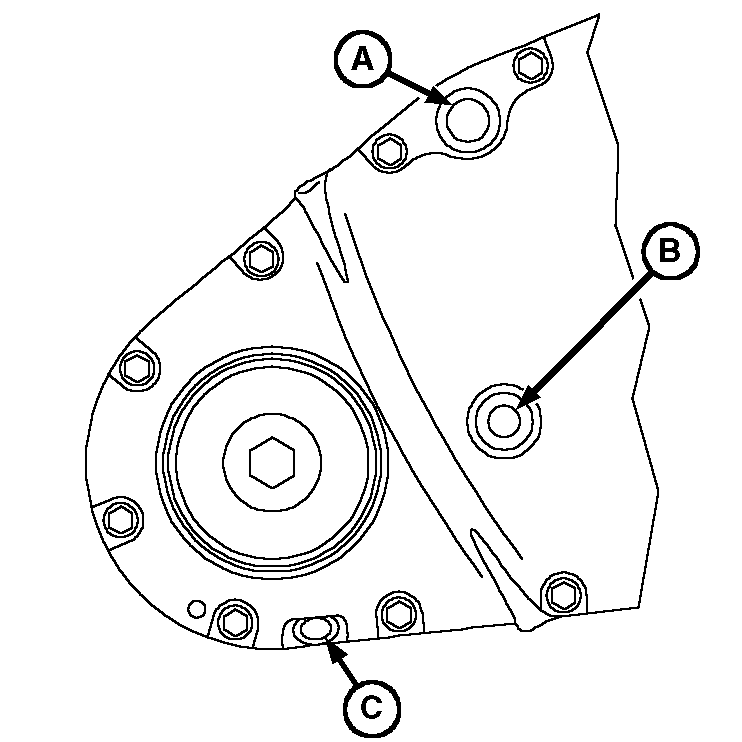

A-Oil Fill Port with Breather
B-Oil Level Check Port
C-Oil Drain Port
