Replacing Knife Sections

1. Position knife so hold downs and/or guard tangs do not inhibit section removal.

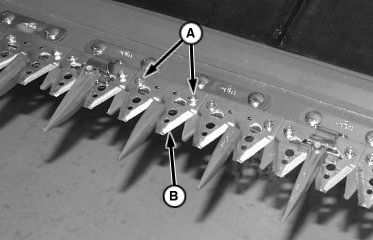

2. Remove nuts (A) on section.

3. Tap or pry up section (B) and discard.


A-Nut
B-Section

H61625

OUO6075,00000C2 -19-21NOV00-1/2

NOTE: It may be necessary to reposition the knife slightly to enable bolts to pass through guard opening.

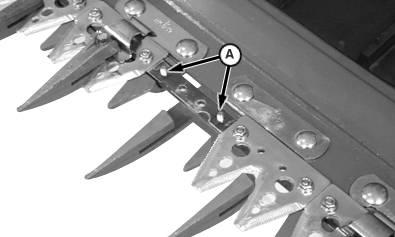

4. Remove and discard any damaged bolts (A).

NOTE: Section bolt has a oval body which must be aligned with oval in knife back before bolt will draw up.

5. Replace bolts (A), insure oval body and head are fully seated.

6. Install new section. Tighten nuts to specification.

Specification

Nut -Torque 18 N·m (13 lb-ft)
