Replacing Cutterbar Drive Belt

1. Shut off engine and lower reel safety stops (A), both sides of platform.

A-Reel Safety Stop
B-Spring Tensioner

OUO6075,00000C3 -19-21NOV00-1/2

2. Remove left-hand end cover.

3. Lift up on front of left-hand divider.

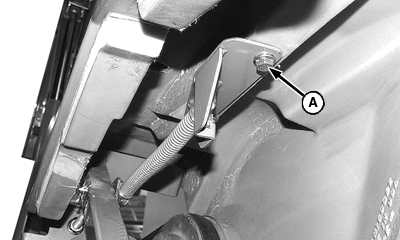

4. Remove two cap screws (A) from spring anchor bracket.

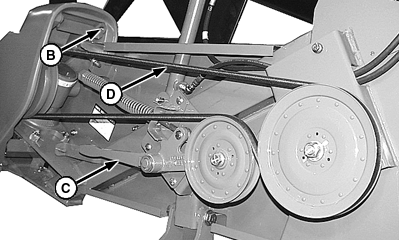

5. Remove two cap screws (B), spacers and front divider.

6. Lift lever (C) to release tension on knife drive belt (D) and remove.

7. Remove belt.

8. Position new belt in sheave grooves. Pull lever (C) upward and slip belt on tensioner.

9. Install front divider.

10. Install end cover.

A-Cap Screw (2 used)
B-Cap Screws (2 used)
C-Lever
D-Knife Drive Belt

OUO6075,00000C3 -19-21NOV00-2/2
