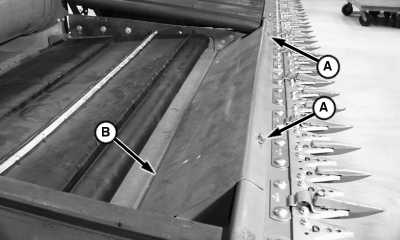

1. Remove cap screws (A) and front sump pan (B) (see Adjustments - Feeding Related section).

A-Cap Screws
B-Sump Pan

OUO6075,000022B -19-05DEC00-2/5

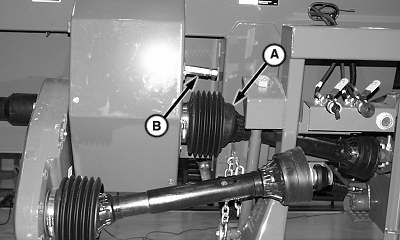

2. Disconnect the feed drum driveshaft (A) and store onto storage shaft (B).

3. Advance feed drum finger timing as needed to provide adequate back sheet clearance (see Platform Adjustment - Feeding Related section).

A-Driveshaft
B-Storage Shaft

OUO6075,000022B -19-05DEC00-3/5

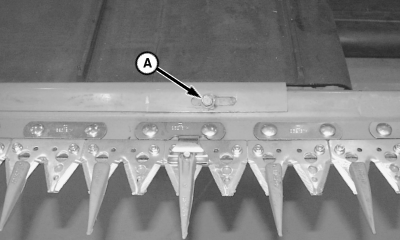

4. Remove cap screws (A) from right-hand inside frame and back sheet clamps.

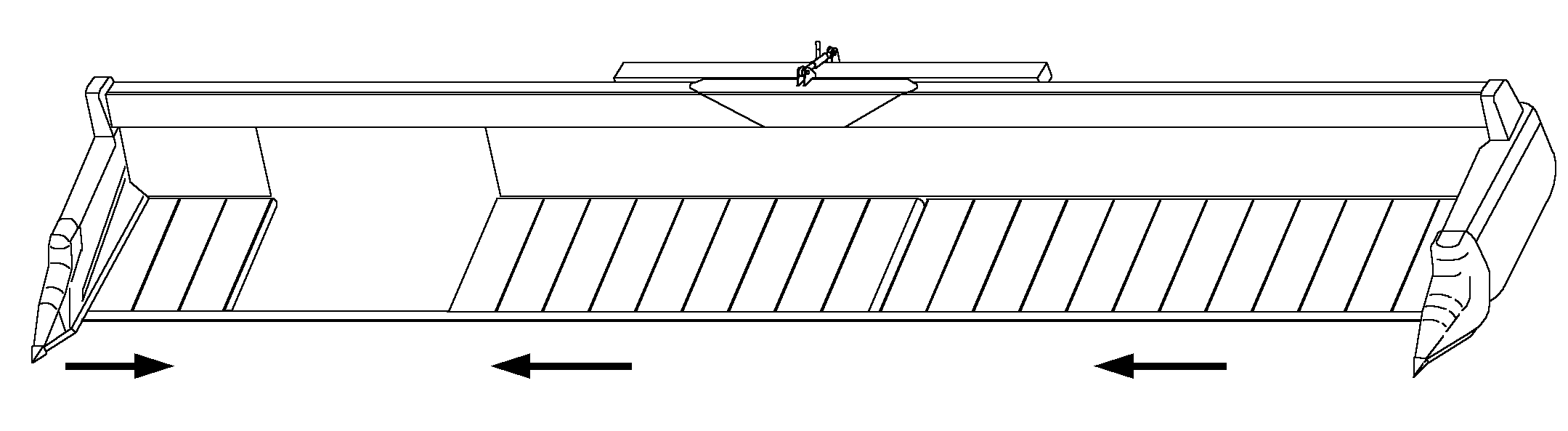

5. Slide the sub-frame to the left, leaving 40 mm (1 1/2 in.) minimum clearance between belt feed lugs.

6. Reinstall cap screws (A) in new position and re-install back sheet clamps as needed.

A-Cap Screw

OUO6075,000022B -19-05DEC00-4/5

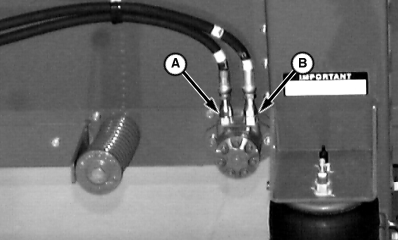

7. Reverse hydraulic hoses (A) and (B) on the inner right-hand side belt motor.

A-Hydraulic Hose
B-Hydraulic Hose

OUO6075,000022B -19-05DEC00-5/5
