End Cover Installation

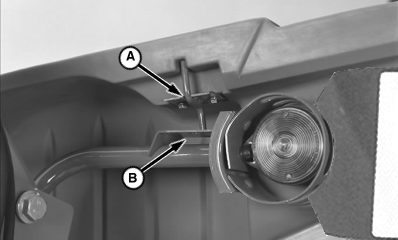

1. Remove end cover (A) from marker light bracket (B).

2. Angle rear of cover away from frame.

NOTE: Verify cover engagement by insuring cover edge rests on frame end sheet, and outside front vertical surface is parallel to the divider surface.

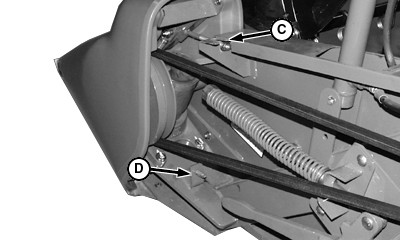

3. Push forward on end cover until end cover aligns with brackets (C) and (D).


A-End Cover
B-Marker Light
C-Mounting Bracket
D-Mounting Bracket

H61723
H60866

OUO6075,000022E -19-05DEC00-1/2

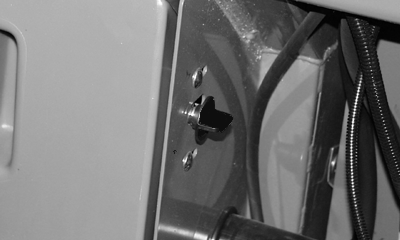

4. Push end cover in at the rear to latch.

H60868

OUO6075,000022E -19-05DEC00-2/2
