Detaching Platform from CombineDisconnect wiring harness (A) from left-hand side of feeder house and install dust cap. Close coupling valve and disconnect reel lift hose (B) from coupler. Close coupling valve and disconnect reel fore/aft hydraulic hose (C) (optional) from coupler.
|
|
OUO6075,000028E -19-08DEC00-1/7 |
|

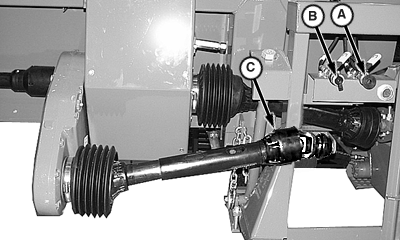

Install dust caps (A) and (B) on couplers. Disconnect drive shaft (C) and place in storage position as shown.
|
|
OUO6075,000028E -19-08DEC00-2/7 |
|
Place wiring harness (A) in storage position. Remove dust cap (C) and connect reel lift hydraulic hose (B) to quick coupler. Install dust cap and place reel fore/aft hydraulic hose (D) (optional) in storage position.
|
|
OUO6075,000028E -19-08DEC00-3/7 |
|

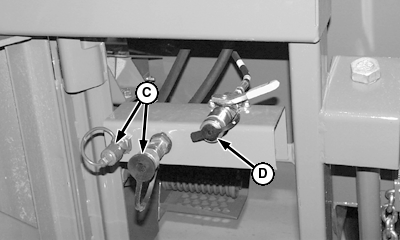

Disconnect reel drive hoses (A) from right-hand side of machine. Close coupling valve and disconnect reel fore/aft hose (B) (optional) from coupler. Install dust caps (C) and (D) on couplers.
|
|
OUO6075,000028E -19-08DEC00-4/7 |
|

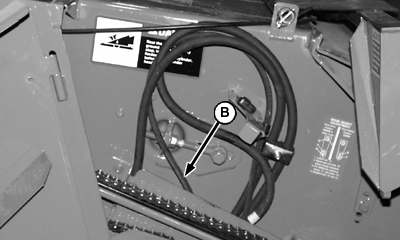

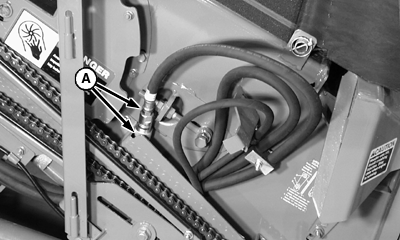

IMPORTANT: Reel drive hydraulic hoses (A) must be connected together. Relief valve will operate and cause overheating and damage if hoses are not connected. Connect reel drive hydraulic hoses (A) together and place hoses and reel fore/aft hydraulic hose (B) in storage position.
|
|
OUO6075,000028E -19-08DEC00-5/7 |
|

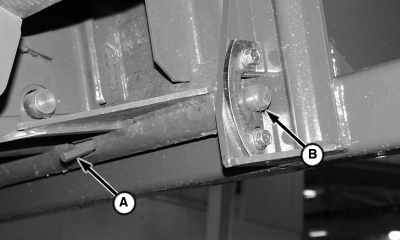

(BOTH SIDES): Push locking pin handle (A) in and up so locking pin (B) will unlock from platform.
|
|
OUO6075,000028E -19-08DEC00-6/7 |
|

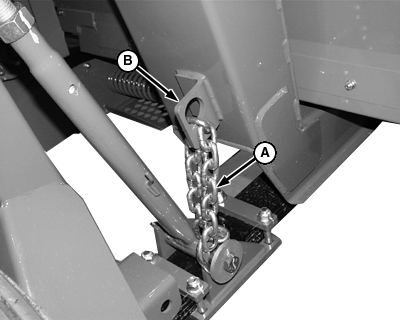

IMPORTANT: (BOTH SIDES): Before lowering platform, make sure the attachment frame lockout chains (A) are latched between the leveling screws and the main frame bracket (B) or the frame will lower to the ground making transport and reattachment very difficult. Start engine and lower feeder house until platform is on the ground and pivot blocks are free. Drive combine slowly rearward until feeder house is clear of platform.
|
|
OUO6075,000028E -19-08DEC00-7/7 |
