Skid Shoes

The draper skid shoe attachment improves flotation performance when operating on or close to loose or sticky soils.

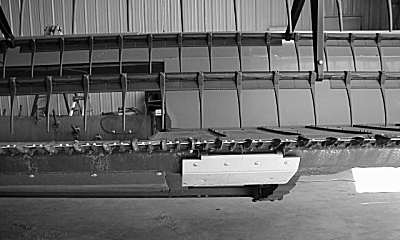

Four skid plate assemblies are positioned in key locations under the cutterbar. The plates support the cutterbar and restrict it's ability to push soil. The plates are covered with a replaceable plastic surface, which minimizes most soil build up.

OUO6075,00013ED -19-05FEB01-1/1
