Knife Hold-Down Clearance

1. Position knife sections (A) so they are centered on rock guards.

2. Slide a 0.50 mm (0.020 in) feeler gauge under knife hold down (B).

3. Apply light down pressure on the knife section adjacent to the adjusting screw.

4. Tighten adjusting screw (C) until light pressure is applied to feeler gauge.

NOTE: In tough conditions, this clearance may need to be reduced to optimize cutting performance. Only tighten as needed as knife life is affected. Minimum hold down to section clearance is .3 mm (0.012 in.).

Specification

Knife Hold Down to Section -Normal Clearance 0.5 mm (0.020 in)
Minimum Clearance 0.3 mm (0.012 in)

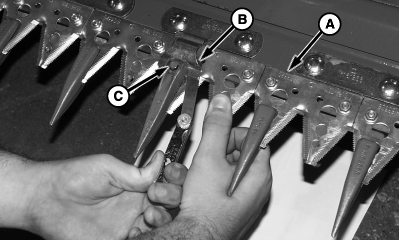

H64763


A-Knife Section
B-Hold Down
C-Adjustment Screw

OUO6075,00013F3 -19-05FEB01-1/1
