Adjusting Draper Side Belt Tension

NOTE: In wet or heavy crop conditions, additional belt tension may be required to prevent belt slippage. Increase belt tension only as required as belt life is affected. Do not adjust face of spring more than 50 mm (2 in.) past tensioning gauge.

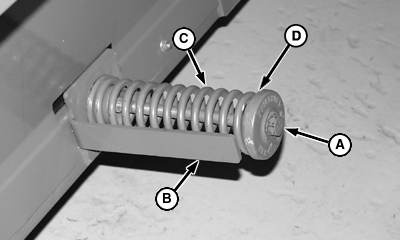

Tighten screw (A) until outward spring face (D) of spring (C) is the same length as gauge (B).

A-Tension Screw
B-Tension gauge
C-Spring
D-Spring Face

OUO6075,0001428 -19-13FEB01-1/1
