OMH201805: 925D, 930D and 936D Draper Platforms, Block File: OUO6075_0001456_19

NOTE: If moving rearward from front cylinder mount position reverse the following steps.

If moving forward from rear cylinder mount position follow these steps:

1. Extend cylinder, moving reel forward.

NOTE: Failure to secure the mount could cause loss of reel control when rear cylinder mount pin is removed.

2. Retain reel mounts on both ends by pinning (or bolting) (A) mount to arm.

3. Remove hose clamps as needed.

A-Pin

OUO6075,0001456 -19-15FEB01-1/3

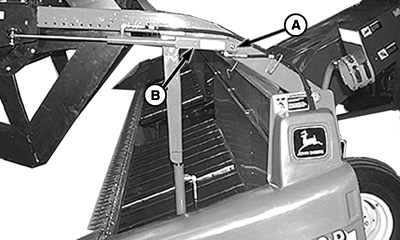

4. Remove cylinder rear pin (A) and cotter pin.

5. Retract cylinders until rear mount hole is in line with front reel hole (B).

6. Secure cylinders to bracket using reel pin and cotter pin.

A-Rear Reel Pin
B-Front Reel Hole

OUO6075,0001456 -19-15FEB01-2/3

7. Remove both reel mounting pins (or bolts) (A).

NOTE: Make sure there is sufficient hose slack to handle all reel and arm movements.

8. Retain hoses with clamps.

A-Pin

OUO6075,0001456 -19-15FEB01-3/3
