Manual Adjustment of Reel Fore/Aft

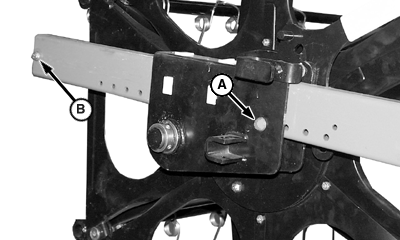

IMPORTANT: Keep 38 mm (1-1/2 in.) minimum clearance between tips of reel fingers and cutterbar; less clearance can damage reel fingers and/or cutterbar. Failure to have flat washers on both ends of stop bolt (B) may result in structural damage. NOTE: Reel is easier to move if support arms are level. (BOTH SIDES): Insure front reel arm stop bolt and flat washer (B) is in place. Remove pin (A) on both sides, slide reel as needed and insert pins. Position both ends of reel evenly on the support arms. Rotate reel by hand to check for clearance with knife. |
|
CAUTION:
Engine must be off and key removed before working on reel.
OUO6075,000149D -19-21FEB01-1/1 |
