Guard Replacement

1. Position knife section points between the guard points.

NOTE: Clean all surfaces.

2. Remove rock guard bolts (A) and reinforcement straps.

3. Remove and replace any damaged or worn rock guards.

4. Install reinforcement straps and tighten rock guard bolts while pushing rearward on guards to insure guards are fully back and wear bar is parallel to front of cutterbar.

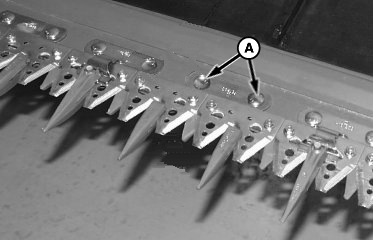

A-Rock Guard Bolts
