Right-Hand End Guard Replacement

1. Remove knife shield bolts (A) and knife shield (B).

2. Remove rock guard bolts (C) and reinforcement strap.

NOTE: Clean all surfaces.

3. Remove and replace damaged or worn guard.

4. Install reinforcement strap and tighten rock guard bolts while pushing rearward on guards to insure guards are fully back and wear bar is parallel to front of cutterbar.

NOTE: A good fit is required between the knife guard and shield to minimize the amount of crop material which enters the area at the knife and under the dividers.

5. Install right-hand knife shield.

IMPORTANT: Contact between knife and shield will cause shield damage.

6. Cycle knife manually to make sure no contact between knife and shield exists. If contact exists, loosen bolts and reposition shield as required to eliminate contact.

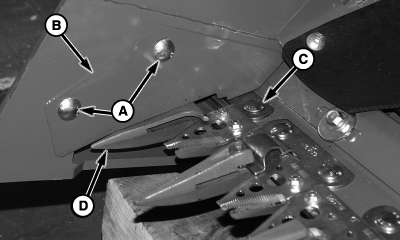

H66561


A-Knife Shield Bolts
B-Knife Shield
C-Rock Guard Bolts
D-Rock Guard
