Attaching Corn Head (S/N -685XXX) to Sidehill 9500, Sidehill 9510 and Combines with CONTOUR MASTER

IMPORTANT: Lock pin (A) must be positioned "in" before attaching header. If pins are left in the "out" position, feeder house will be damaged when header is attached.

Sound horn, start engine and lower feeder house.

Drive combine slowly forward until feeder house is centered in corn head opening. Raise feeder house, shut off engine and remove key. Pivot blocks (B) on feeder house must be seated in pockets under top beam of platform.

A-Lock Pin
B-Pivot Blocks

OUO6035,00013C8 -19-06APR01-1/7

IMPORTANT: Reel drive hoses (A) must be connected together in storage position before using corn head. If connection is not made, hydraulic system can be damaged by overheating from constant operation of relief valve. To prevent damage, store hoses as shown.

NOTE: See your combine operator's manual for adjustments needed before harvesting corn.

Lower safety stop (A) onto hydraulic cylinder rod.

A-Safety Stop

OUO6035,00013C8 -19-06APR01-2/7

Pivot stop handle down to let lock pin (A) lock into header. The lock pin must extend thru latch plate (B), if not; turn plate over. The latch plate must contact surface (C). Tolerances may require that latch plates be installed differently on left-and right-hand side.

A-Lock Pin
B-Latch Plate
C-Surface

OUO6035,00013C8 -19-06APR01-3/7

IMPORTANT: Header may detach from combine if latch plate is not in place.

Remove right-hand side feeder house shield.

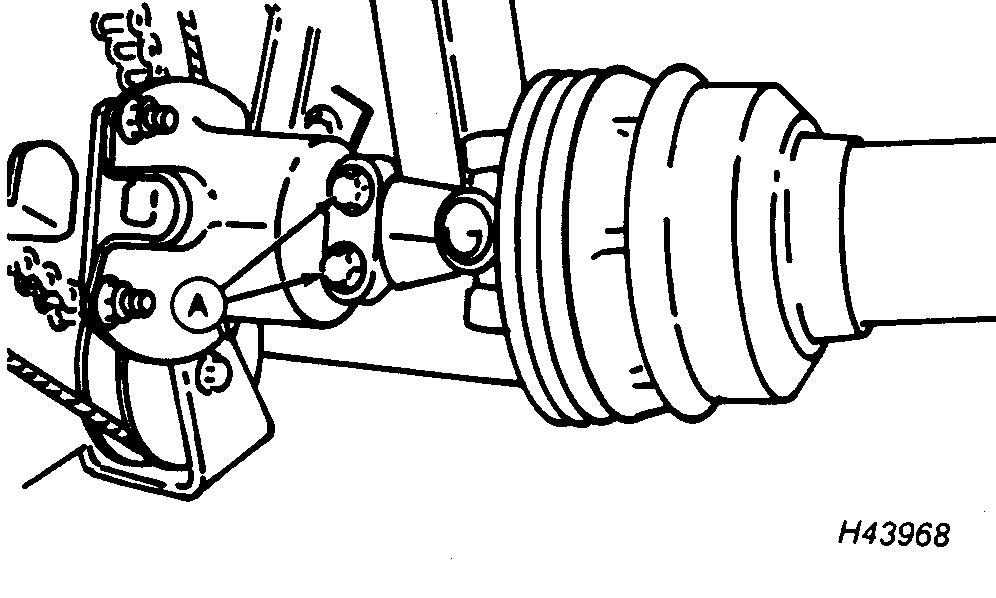

Install drive shaft on feeder house drive shaft. Torque cap screws (A) to specification.

Specification

A-Cap Screw

OUO6035,00013C8 -19-06APR01-4/7

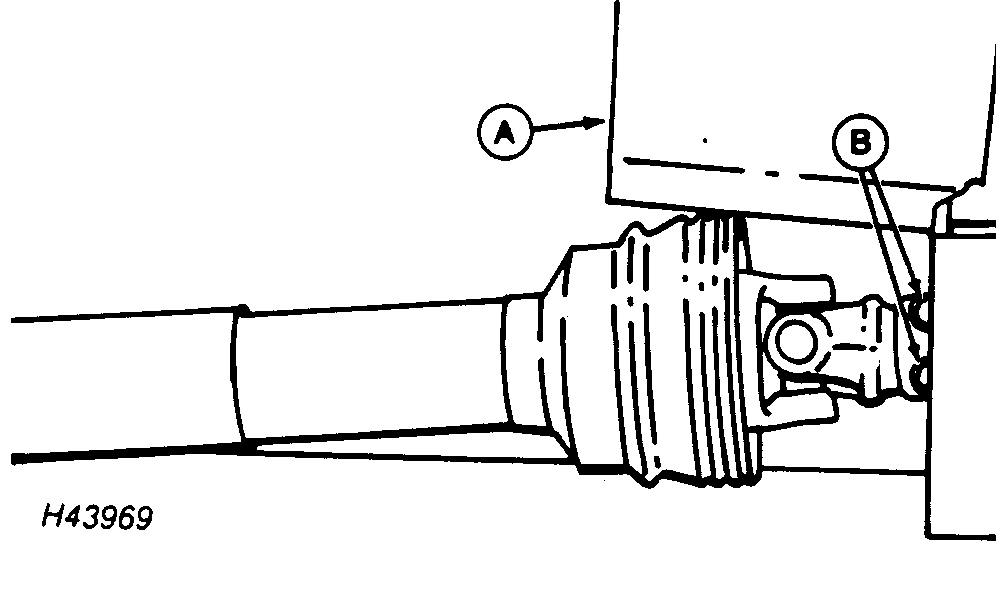

Raise shield (A) on corn head drive shaft and install other end of drive on corn head drive shaft. Torque cap screws (B) to specification.

Specification

Lower shield on corn head drive shaft and reinstall right-hand side feeder house shield.

Install second drive shaft on left-hand side of feeder house and corn head drive shaft.

A-Shield
B-Cap Screw

OUO6035,00013C8 -19-06APR01-5/7

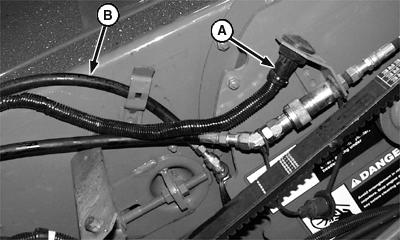

Remove wiring harness (A) from storage position on combine.

NOTE: Wiring harness includes circuit for warning lights.

IF EQUIPPED WITH ADJUSTABLE DECK PLATES:

Remove reel fore/aft hydraulic hose (B) from storage position.

A-Wiring Harness
B-Reel Fore/Aft Hydraulic Hose

OUO6035,00013C8 -19-06APR01-6/7

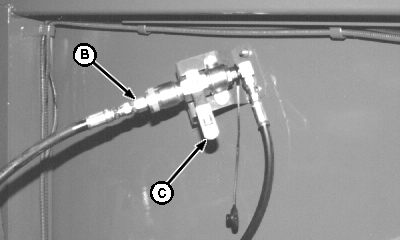

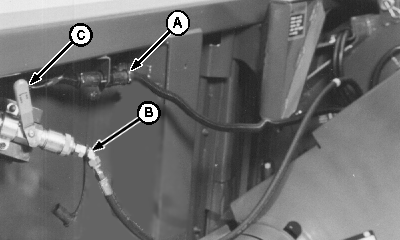

Connect wiring harness (A) to harness on left-hand side of corn head.

IF EQUIPPED WITH ADJUSTABLE DECK PLATES:

Remove dust cap and connect reel fore/aft hydraulic hoses (B) to couplers on left-hand and right-hand side of corn head.

Open valve (C) on left-hand and right-hand couplers.

A-Wiring Harness
B-Hydraulic Hose
C-Valve

OUO6035,00013C8 -19-06APR01-7/7
