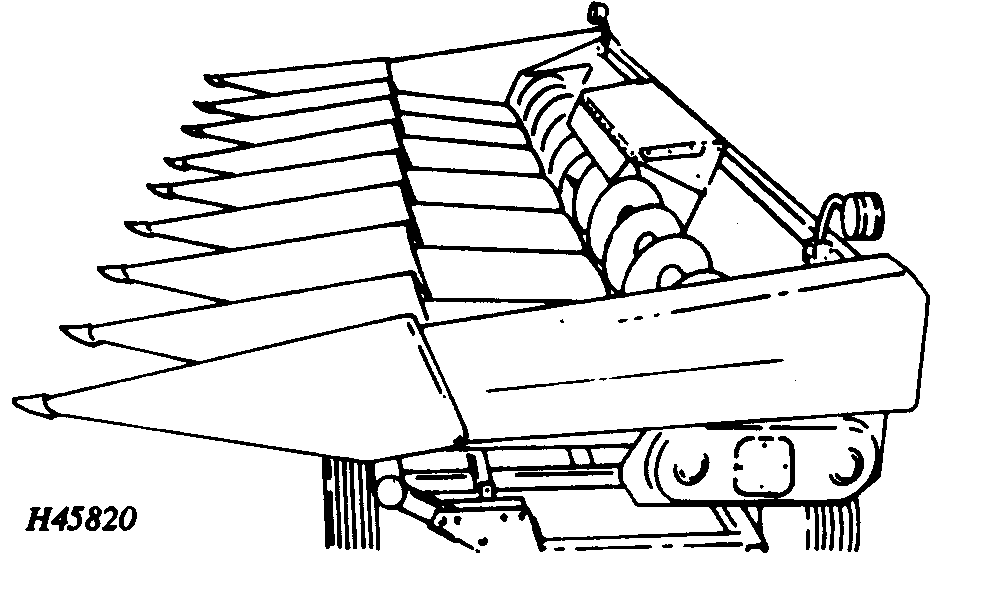

Transporting Corn Head on a Trailer

IMPORTANT: If equipped with ACTIVE HEADER CONTROL (AHC) ™ ground sensors, the sensors must be placed in storage position to prevent equipment damage when folding points.

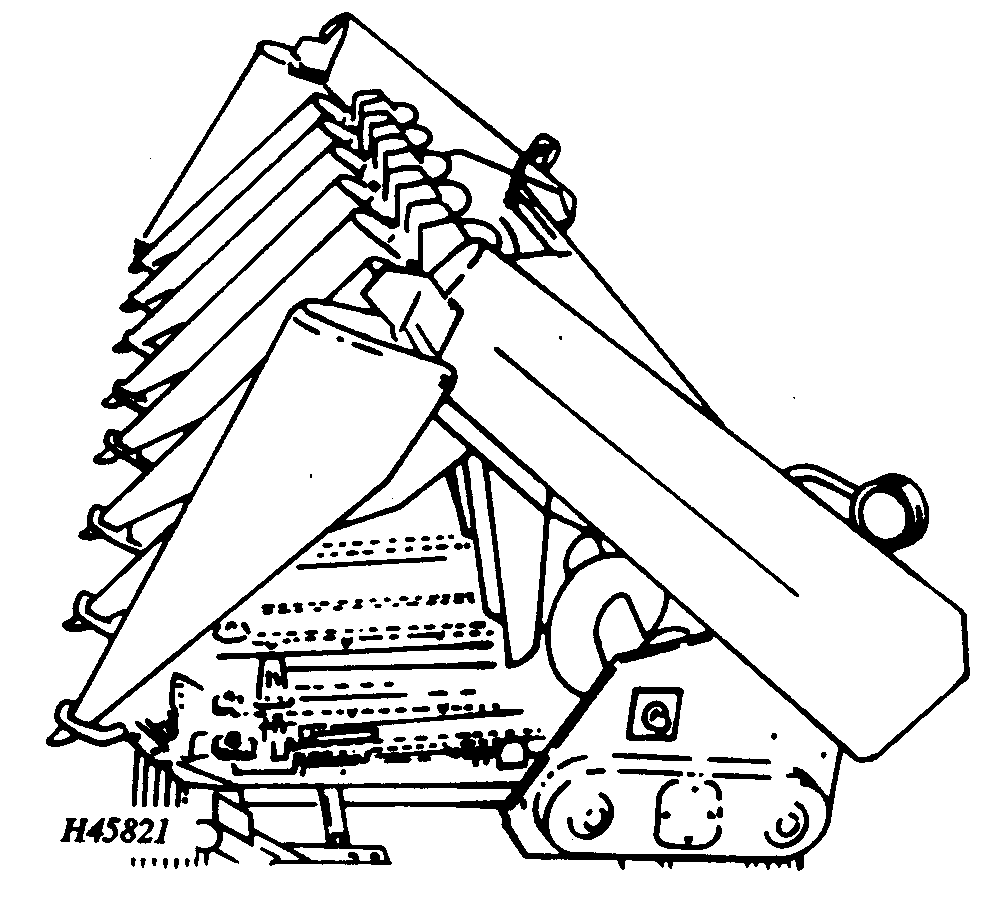

If less transport width is desired, the points and gathering shields can be pivoted upwards to lessen transport width.

ACTIVE HEADER CONTROL is a trademark of Deere & Company

OUO6035,00013CA -19-06APR01-1/7

(Center Gatherer Shields) Raise the point and remove quick-lock pins (A).

(Center Gatherer Shields) Remove spring locking pin and drilled pin (B).

A-Quick Lock Pin
B-Drilled Pin

OUO6035,00013CA -19-06APR01-2/7

(Center Gatherer Shields) Press down on the point tip and pivot the point and gathering shield upwards and insert point through support (A) and insert drilled pin through pin support and transport loop (B). Retain drilled pin using spring locking pin.

A-Support
B-Transport Loop

OUO6035,00013CA -19-06APR01-3/7

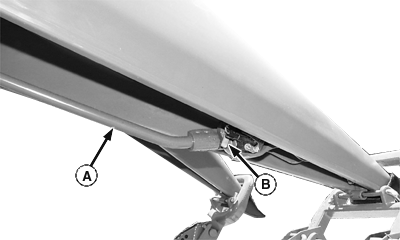

(Storing ACTIVE HEADER CONTROL Ground Sensors) Rotate sensor arm (A) and up into storage position. Retain with storage lock pin (B).

A-Sensor Arm
B-Storage Lock Pin

OUO6035,00013CA -19-06APR01-4/7

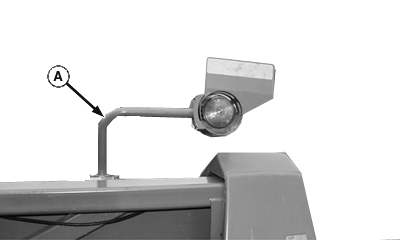

(Outer Gatherer Sheets) Rotate header warning lights (A) rearward.

A-Warning Light

OUO6035,00013CA -19-06APR01-5/7

(Outer Gatherer Sheets) Raise point and remove quick-locking pin (A).

(Outer Gatherer Sheets) Remove spring locking pin and drilled pin (B).

A-Quick Locking Pin
B-Drilled Pin

OUO6035,00013CA -19-06APR01-6/7

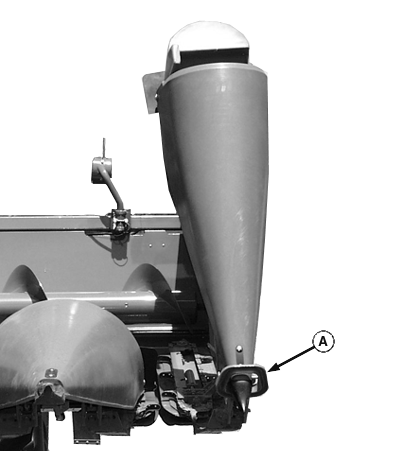

(Outer Gatherer Sheets) Pivot the point and gathering shield upwards and insert point through support (A). Insert drilled pin through pin support and transport loop. Secure drilled pin with spring locking pin.

A-Support

OUO6035,00013CA -19-06APR01-7/7
