Replacing Feed Drum Fingers and Retainers

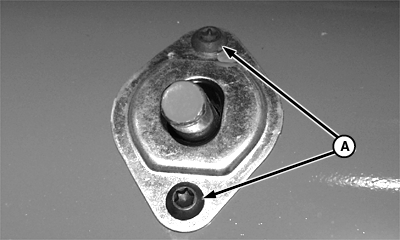

1. Use JDC-3 driver to remove two finger guide screws (A) and guide.

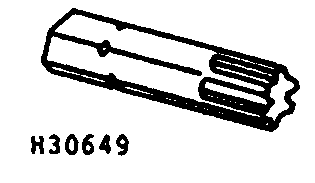

NOTE: Order JDC-3 from your John Deere dealer. Use driver with 1/4 to 3/8-in adapter.

A-Finger Guide Screw

OUO6035,00013FF -19-20APR01-1/5

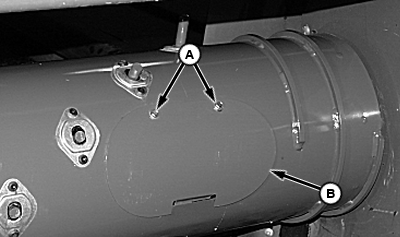

2. Remove cap screws (A) and access hole covers (B).

A-Cap Screw
B-Access Hole Cover

OUO6035,00013FF -19-20APR01-2/5

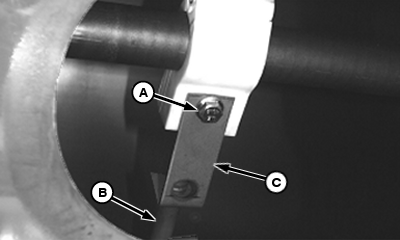

3. Remove cap screw (A), feed drum finger (B) and retainer (C). Remove broken parts.

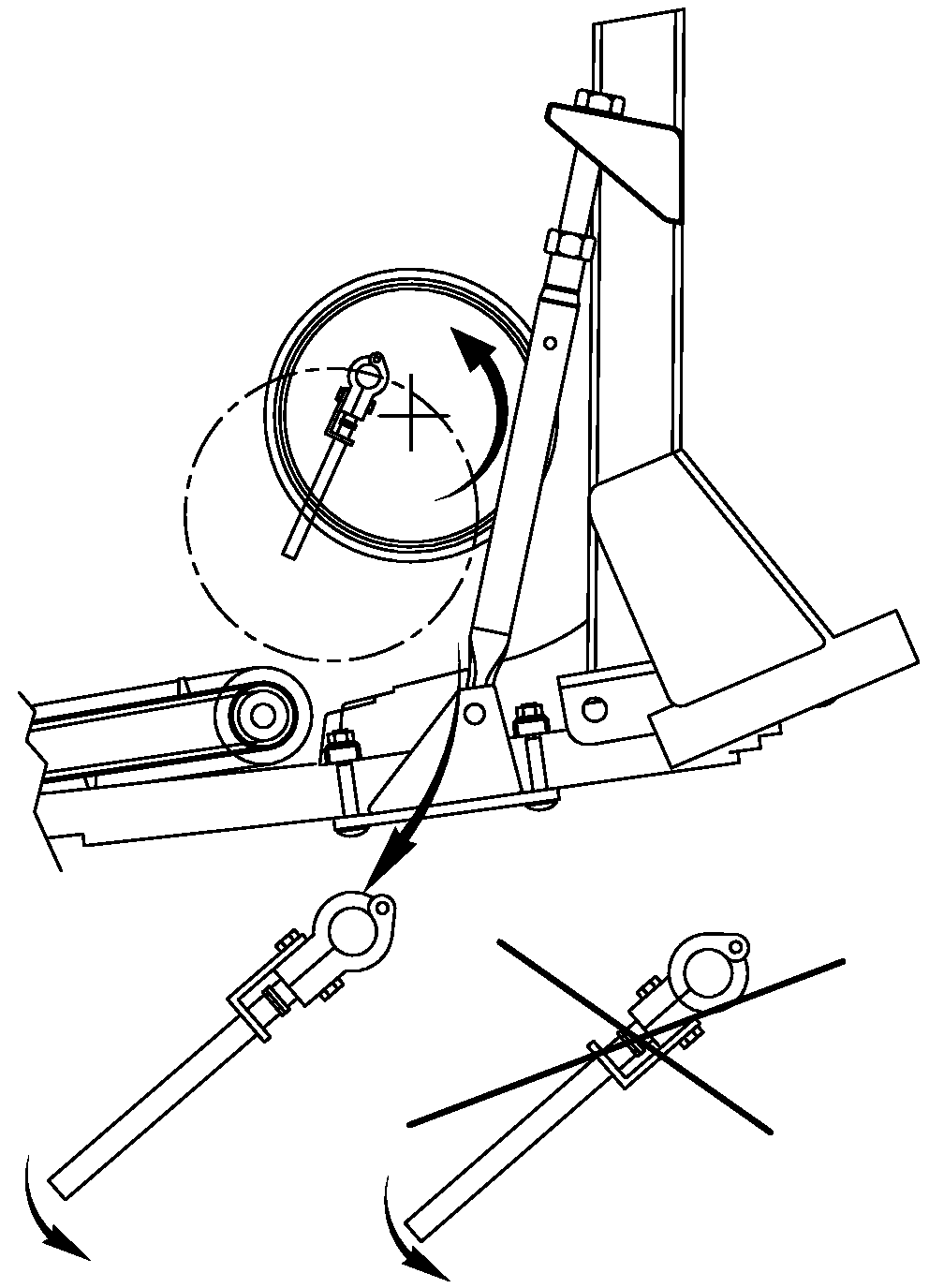

IMPORTANT: Replace feed drum finger retainers (C) when replacing feed drum fingers (B). Install retainer with open side of bend facing direction of feed drum rotation (see illustration).

4. Install new parts and tighten cap screw to specification.

Specification

A-Cap Screw
B-Feed Drum Finger
C-Retainer

OUO6035,00013FF -19-20APR01-3/5

5. Install access cover (B) and retain with cap screws (A).

A-Cap Screw
B-Access Hole Cover

OUO6035,00013FF -19-20APR01-4/5

6. Install guide and retain with auger finger guide screws (A).

A-Finger Guide Screw

OUO6035,00013FF -19-20APR01-5/5
