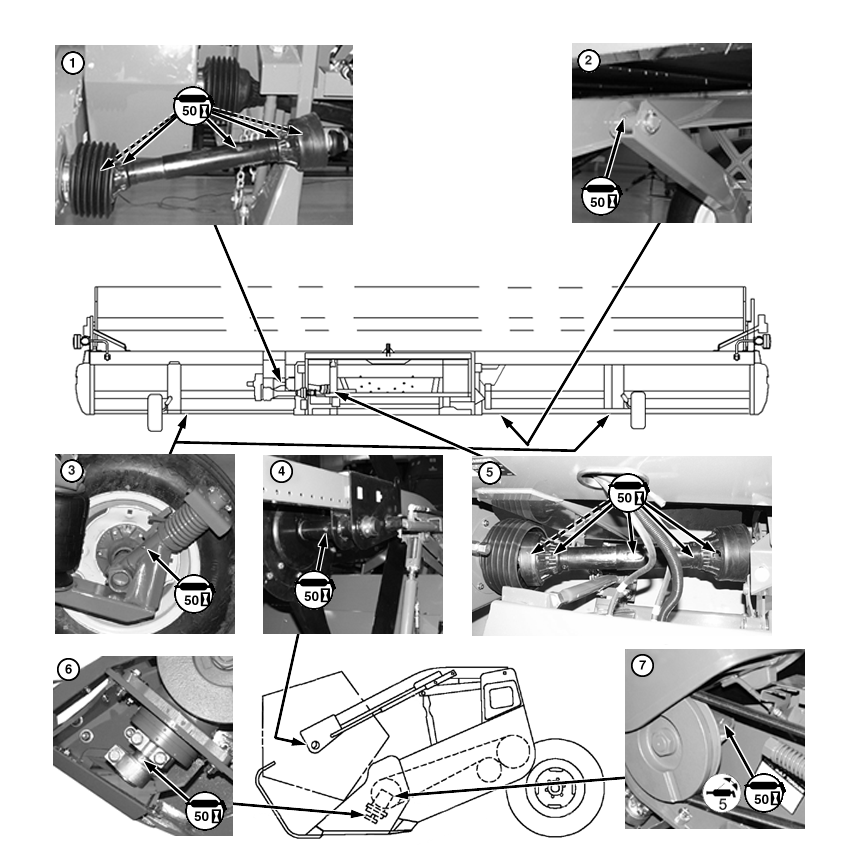

1. Grease telescopic drive shaft U-joints and align holes in shield to grease both spline zerks. Grease shield bearings. Grease six places.

2. (IF EQUIPPED): Grease right-hand transport arm.

3. (IF EQUIPPED) (BOTH SIDES): Grease gauge wheel kingpins.

4. (BOTH SIDES): Grease reel shaft housing (5 pumps or until grease protrudes).

OUO6035,0001406 -19-30APR01-1/2

5. Grease auger telescopic drive shaft U-joints and align holes in shield to grease spline zerk. Grease shield bearings. Grease five places.

6. Grease knife head bearing.

NOTE: It is normal for the knife drive gearbox to operate very warm. DO NOT over grease in an

7. Grease knife drive gearbox (5 pumps every 50 hrs.) .

OUO6035,0001406 -19-30APR01-2/2
