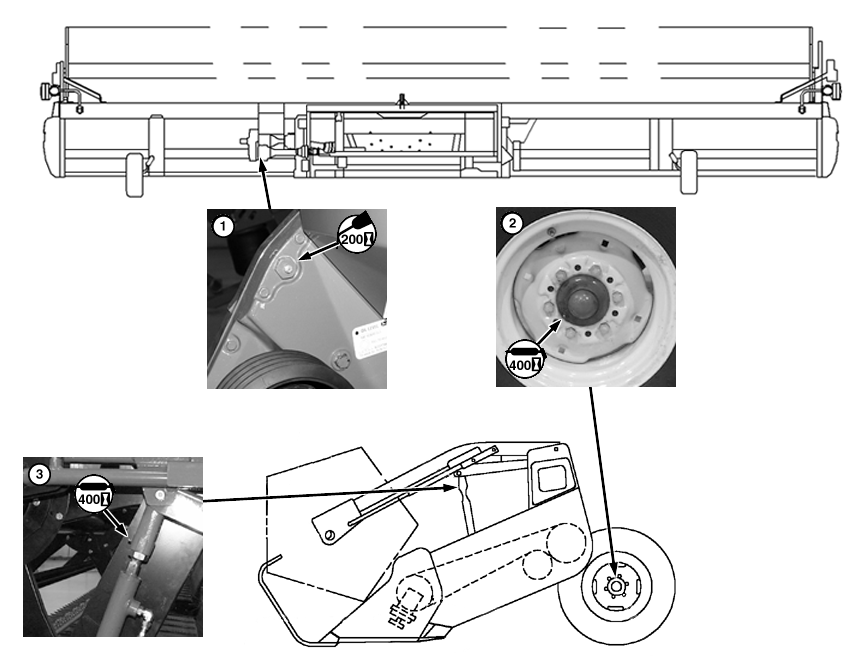

1. Check draper gearbox every 200 hours, add 80W/90 GL5 Gear Lube as needed

2. (BOTH SIDES IF EQUIPPED): When working in water and mud, grease at 10 hours. In normal conditions, grease at 400 hours.

3. (BOTH SIDES): Grease reel lift adjustment casting.

OUO6035,0001407 -19-30APR01-1/1
