Side Draper Belt Replacement

If side or center draper belts become severely torn or damaged, replacement is recommended.

1. Start engine, raise reel lift cylinders and support platform. Place blocking under frame and left-hand and right-hand row dividers.

2. Shut off engine and lower reel safety stops (A), both sides of platform.

NOTE: Procedure to remove right-hand draper belt is illustrated. Procedure to remove left-hand and center belt are similar.

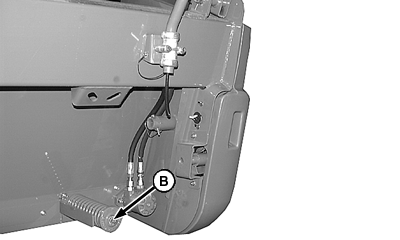

3. Loosen right-hand spring tensioner (B).

4. Manually position belt connector to top.

NOTE: Hardware used with bars are ribbed neck screws, and lock nuts.


A-Reel Safety Stop
B-Spring Tensioner

H67561
H60785

OUO6035,000144C -19-09JUL01-1/6


6. Remove lock nuts (A), cap screws and connector bars (B).

7. Remove end cover (C).

8. Open right-side front divider.

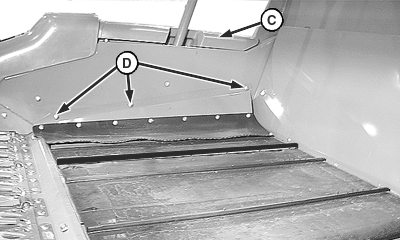

9. Remove carriage bolts (D) and seal.


A-Lock Nut
B-Connector Bar (2 used)
C-Right Side End Cover
D-Carriage Bolts (3 Used)

H68776
H60813

OUO6035,000144C -19-09JUL01-2/6

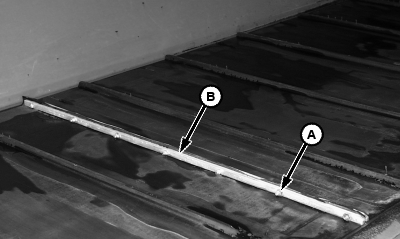

10. Remove cap screws (A) and sump pan (B) in front of the center belt (see Adjustments - Feeding Related section).

11. Slide belt toward center of platform and remove.


A-Cap Screw (2 Used)
B-Sump Pan

H61696

OUO6035,000144C -19-09JUL01-3/6

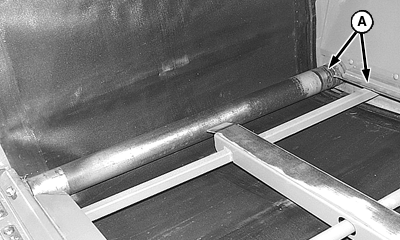

12. Install belt with rib of belt towards rear of platform. Align rib with groove in roller and guide (A).

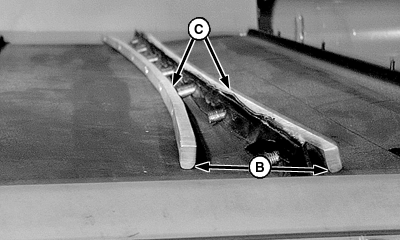

IMPORTANT: Rounded edges (B) of connector center splice bars face down and toward each other. Failure to comply may cause damage to belt and platform.

13. Install connector bars (C). Tighten screws to specification.

Specification

Connector Center Splice Bar Screws -Torque 10 N·m (89 lb-in)


A-Roller and Guide
B-Rounded Edge
C-Connector Bar (2 used)

H60821
H60822

OUO6035,000144C -19-09JUL01-4/6

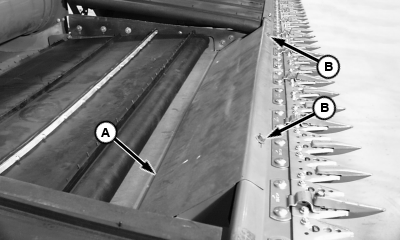

14. Install sump pan (A) and retain with cap screws (B).

15. Install end seal (C).

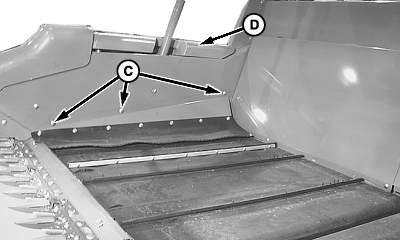

16. Close front divider and install right-hand end cover (D).


A-Sump Pan
B-Cap Screws
C-Seal
D-Right-Hand End Cover

H69148
H69150

OUO6035,000144C -19-09JUL01-5/6

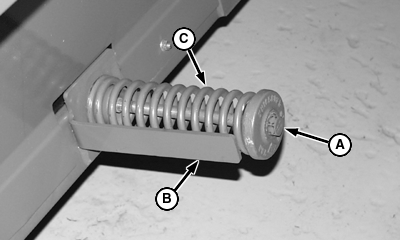

17. Adjust belt tension. Tighten screw (A) until spring (C) is the same length as gauge (B).
