Detaching Platform from Combine

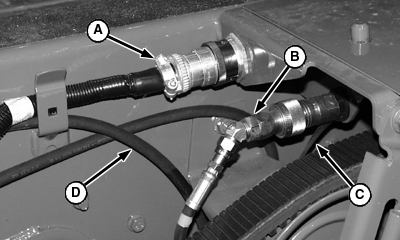

Disconnect wiring harness (A) and install dust cap.

Close coupling valve and disconnect reel lift hose (B) from coupler.

Close coupling valve and disconnect reel fore/aft hydraulic hose (C) (optional) from coupler.

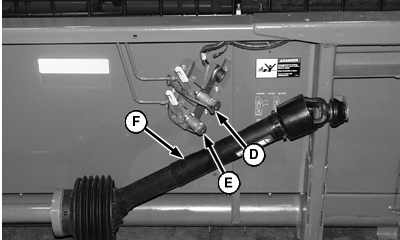

Install dust caps (D) and (E) on couplers.

Disconnect drive shaft (F) and place in storage position.

A-Wiring Harness
B-Reel Lift Hydraulic Hose
C-Reel Fore/Aft Hydraulic Hose
D-Dust Cap
E-Dust Cap
F-Drive Shaft Storage Position

900CP,AD,AP -19-18AUG97-1/5

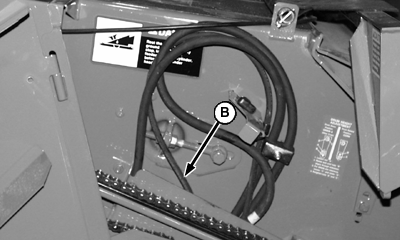

Place wiring harness (A) in storage position.

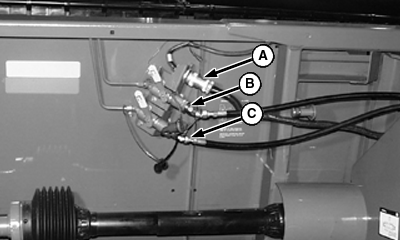

Remove dust cap (C) and connect reel lift hydraulic hose (B) to quick coupler.

Install dust cap and place reel fore/aft hydraulic hose (D) (optional) in storage position.

A-Wiring Harness
B-Reel Fore/Aft Hydraulic Hose
C-Dust Cap
D-Reel Lift Hydraulic Hose
E-Drive Shaft Storage Position

900CP,AD,AP -19-18AUG97-2/5

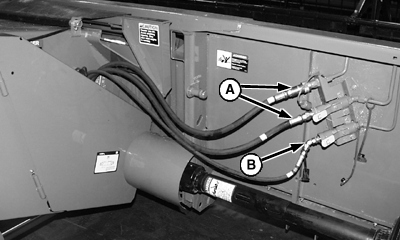

Close coupling valve and disconnect reel drive hoses (A).

Close coupling valve and disconnect reel fore/aft hose (B) (optional) from coupler.

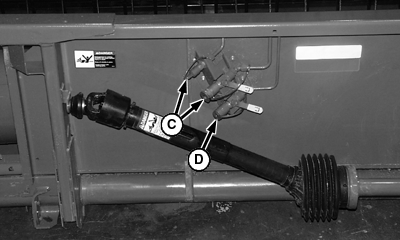

Install dust caps (C) and (D) on couplers.

Disconnect drive shaft and place in storage position.

A-Reel Drive Hydraulic Hose
B-Reel Fore/Aft Hydraulic Hose
C-Dust Cap
D-Dust Cap

900CP,AD,AP -19-18AUG97-3/5

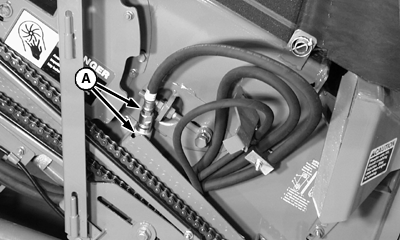

IMPORTANT: Reel drive hydraulic hoses (A) must be connected together. Relief valve will operate and cause overheating and damage if hoses are not connected.

Connect reel drive hydraulic hoses (A) together and place hoses and reel fore/aft hydraulic hose (B) in storage position.

A-Reel Drive Hydraulic Hoses
B-Reel Fore/Aft Hydraulic Hose

900CP,AD,AP -19-18AUG97-4/5

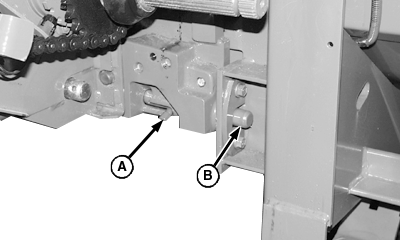

(Both Sides) Push locking pin handle in and up so locking pin (B) will unlock from platform.

Start engine and lower feeder house until platform is on the ground and pivot blocks are free.

Drive combine slowly rearward until feeder house is clear of platform.

A-Stop Bolt
B-Lock Pin

900CP,AD,AP -19-18AUG97-5/5
