Check Auger Stripper Location

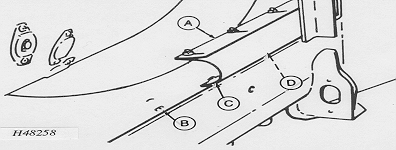

The auger strippers (A) are positioned in three different locations (B), (C) and (D) depending on the size of combine the platform will be used on.

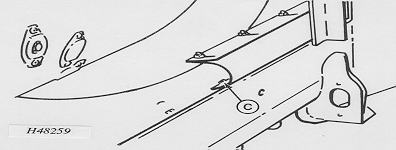

The strippers are shipped from the factory with the auger strippers in position (C).

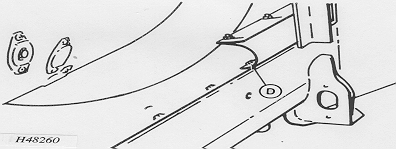

For platforms 25-ft or larger, the strippers are shipped from the factory with the auger strippers in position (D).

(9550, 9650 CTS, 9650 STS and 9750 STS): For 25ft. or larger platforms move strippers to position (C).

A-Auger Strippers
B-Location (B)
C-Location (C)
D-Location (D)

900CP,AD,BG -19-18AUG97-1/1
