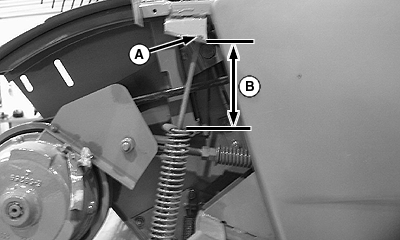

Adjusting Cutterbar Drive Case Support Spring (Flex Platforms Only)Remove cutterbar lockout bolts. Tighten or loosen spring (A) until left-hand end of cutterbar requires about the same lift force as right-hand end of cutterbar. Typical adjustment range (B) 185-215 mm (7 1/4 - 8 1/2 in.) shown. Readjust every time cutterbar tilt is changed significantly.
|
|
900CP,FPA,H -19-18AUG97-1/1 |
