Cutterbar Drive Case

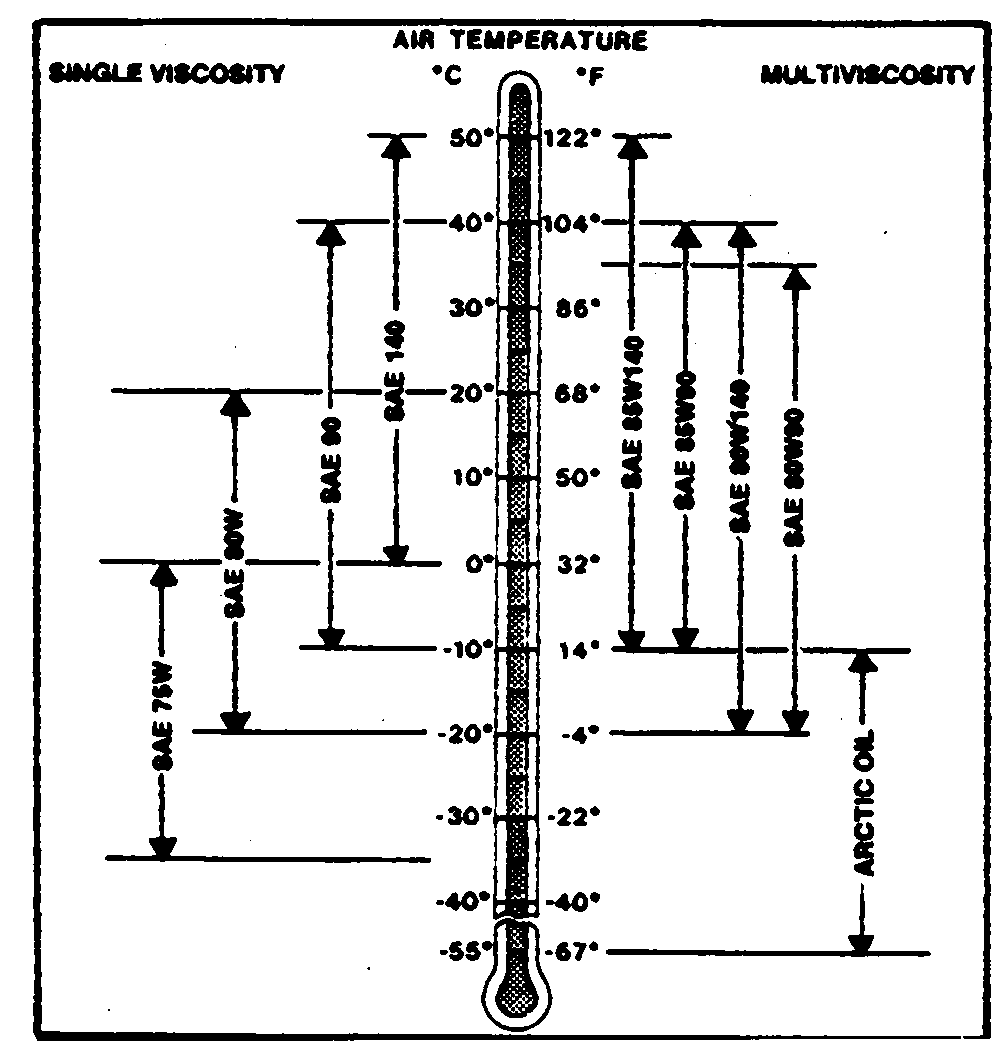

Depending upon the expected air temperature range, use oil viscosity shown on the adjoining temperature chart.

Use one of the following oils in the cutterbar drive gear case:

John Deere API GL-5 Gear Lubricant Oil meeting performance requirements of:

  • API Service Classification GL-5
  • Military Specification MIL-L-2105B
  • Military Specification MIL-L-2105C

Capacity of case is 1 qt (.94L).

Product Number Description Size Pkg. Qty.
TY6252 80W/90 GL5 Gear Lube 35 lb pail 1
TY6296 80W/90 GL5 Gear Lube 1 qt can 12
TY6256 85W/140 GL5 Gear Lube 35 lb pail 1
TY6345 85W/140 GL5 Gear Lube 1 qt can 12


X9321

900CP,LU,A -19-18AUG97-1/1
