causym CAUTION: Lower both safety stops when working under or on the reel.

Sound horn, start combine engine and raise reel all the way. Set parking brake, shut off engine and remove key.

900CP,RA,A -19-18AUG97-1/2

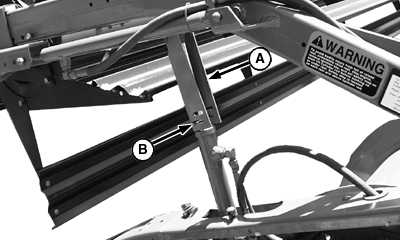

Unhook stop (A) from storage clip and set stop on cylinder piston rod. Stop must be snapped over cylinder with lock clip (B).

Set safety stop on other end.

A-Stop
B-Lock
