Adjusting Width Between Reel Arms

The width between reel arms is adjustable to center reel platform and allows free movement of reel during fore/aft adjustment.

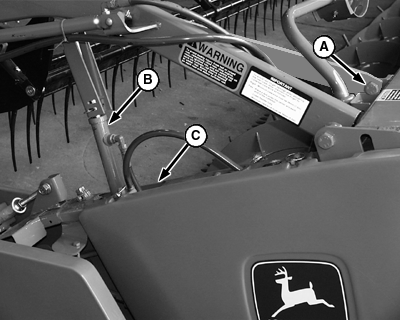

Loosen cap screw (A) on each end of platform.

Move reel as needed to center reel lift cylinders (B) in openings (C) in end sheets.

Tighten cap screw (A) on each end of platform.

Raise and lower reel several times, again checking that cylinders do not bind.

A-Screw
B-Cylinders
C-Openings

900CP,RA,H -19-18AUG97-1/1
