Adjusting Cutterbar Forward

Remove bolts (A), (B) and (C).

Loosen bolts (D) and (E).

A-E-Bolt

900CP,RPA,E -19-18AUG97-1/3

CAUTION: Always lower the safety stop when working under platform. Set parking brake, shut off engine and remove key.

Slip cutterbar belt off tightener.

Remove bolts (A) from each tilt channel.

Remove center two or three skid plates and four 5/16 in. round head bolts in row (B).

NOTE: Remove two skid plates for 925 and Platforms or remove three skid plates for 920 and 922 Platforms.

Remove optional auger anti-wrap shields.

Lower platform to ground.

Drive combine slowly rearward, sliding cutterbar out to correct position.

Install four 5/16 in. round head bolts and 13/32 x 7/8 x .120 in. flat washers in mid-position holes (B) to prevent grain loss.

Replace center skid plates. 5/16 in. hardware cannot be used in forward position (D) because of a brace under floor, or rear position because of brace on skid plates.

Replace and tighten bolts (A) in rows (C) and (D) in each tilt channel with bolt heads up. 1/2 x 1-1/2 in. round head bolts (not provided) can be installed in center holes to prevent grain loss.

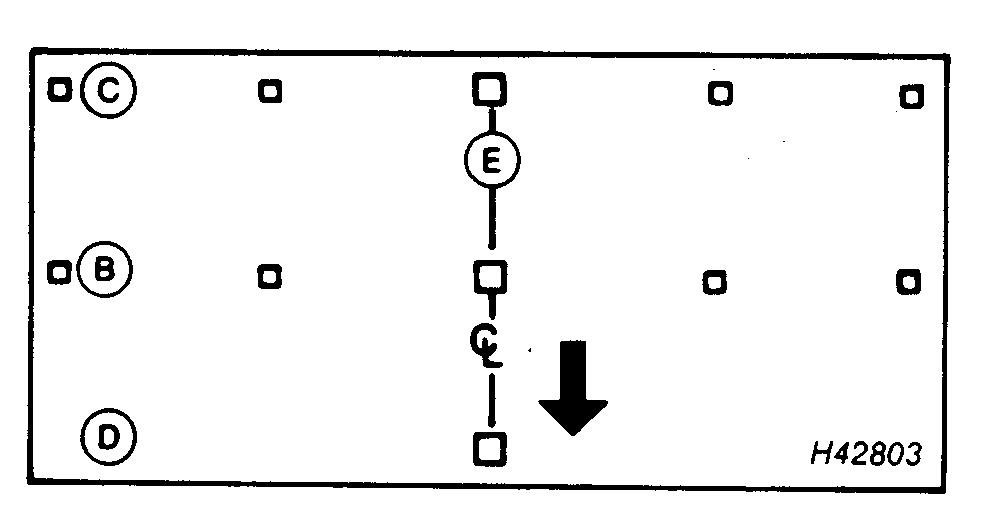

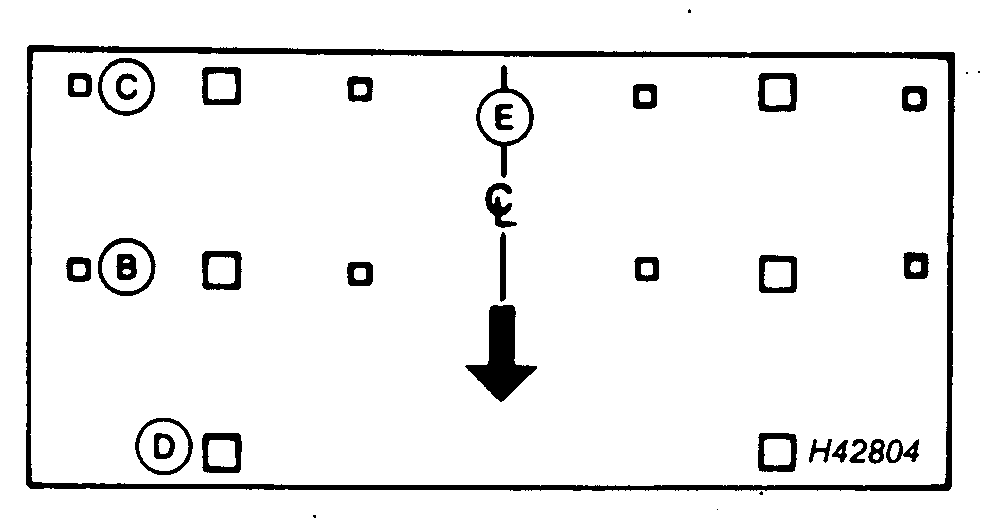

B-Mid Position
C-Rear Position
D-Extended Position
E-Platform Center Line

900CP,RPA,E -19-18AUG97-2/3

On both ends of platform, push divider point down against end sheet.

Tighten bolts (D) and (E).

Replace and tighten bolts (A) and (B).

Save bolt (C) for future use.

Slip cutterbar drive belt on tightener.

If platform is equipped with auger anti-wrap shield, reposition shields to keep them about 13 mm (1/2 in.) from auger flighting.

IMPORTANT: Position of reel fingers or slats changes every time cutterbar is adjusted. Check for 38 mm (1-1/2 in.) finger clearance.

A-E-Bolt

900CP,RPA,E -19-18AUG97-3/3
