Replacing Cutterbar Knife

1. Loosen cap screws (A), remove cotter pin (D) and loosen slotted nut (E).

2. Strike a blow in from the front while prying up on adjusting block (B) until it breaks free.

3. Remove two cap screws (A) securing the adjusting block (B) to arm (C), then remove knife.

4. If a new knife is to be installed, remove adjusting block (B) from old knife by removing slotted nut (E).

5. To install knife, replace but do not tighten cap screws (A). Tighten slotted nut (E) to specification

Specification

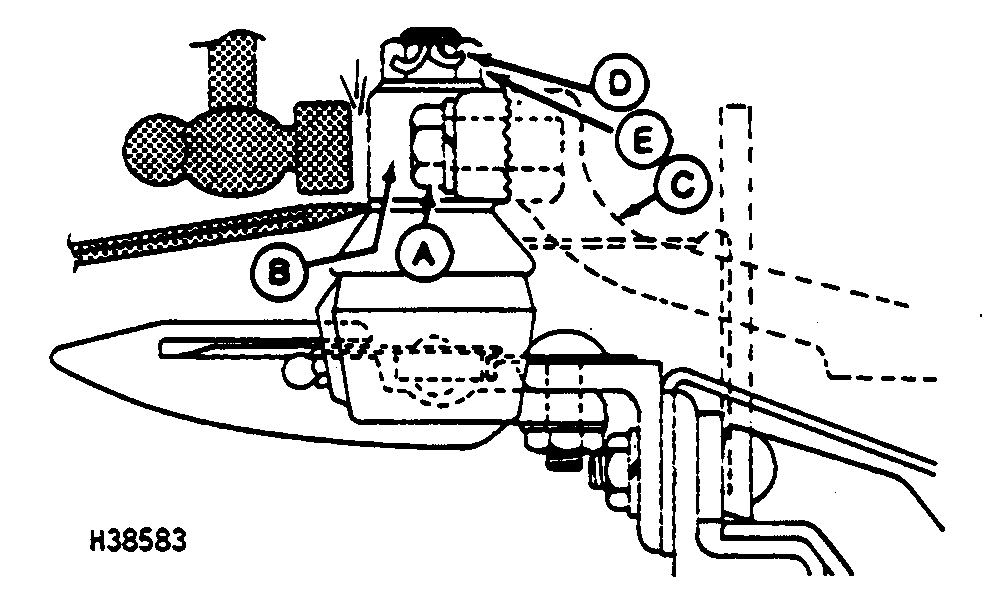

A-Cap Screws
B-Adjusting Block
C-Drive Arm
D-Cotter Pin
E-Slotted Nut

900CP,SE,B -19-18AUG97-1/1
