Setting Knife Register

The knife is registered at the factory and does not need to be registered unless drive arm (A) is removed from yoke shaft (B).

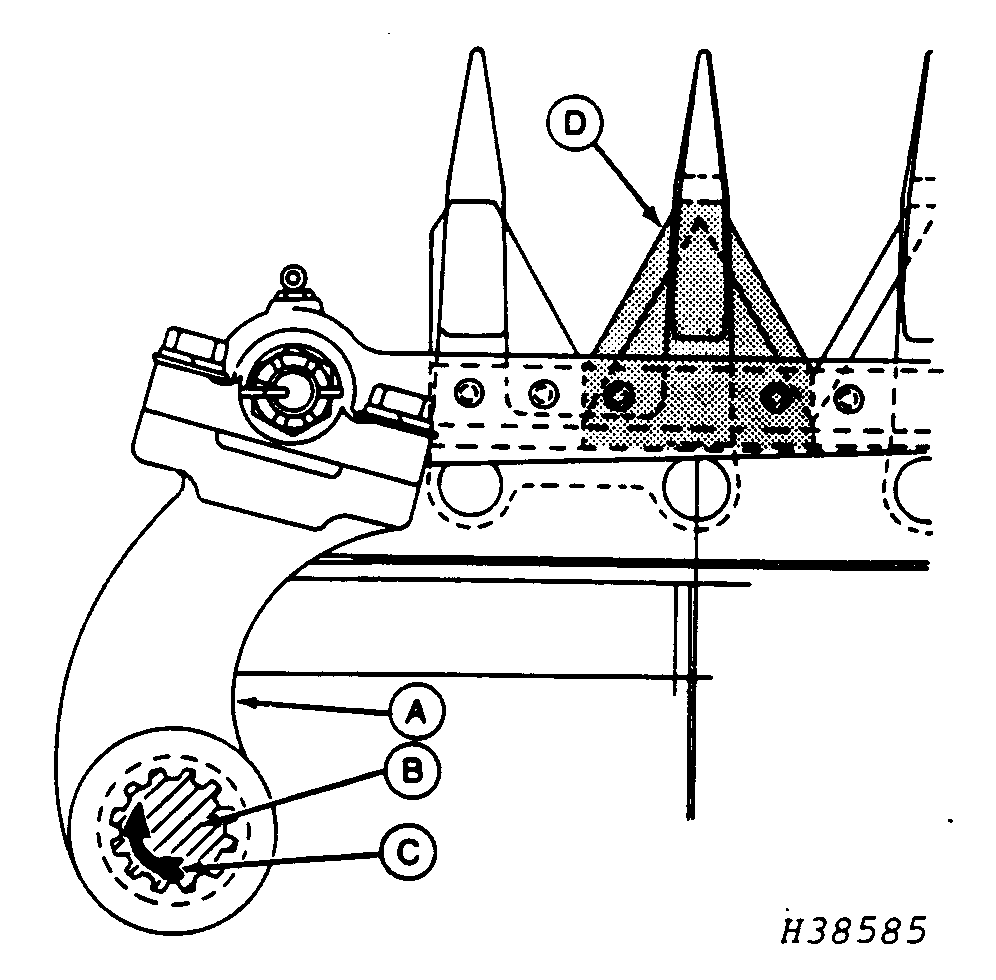

With yoke shaft (B) at maximum clockwise rotation (C), the first full knife section must be centered (D) on the inner prong of the first knife guard.

A-Drive Arm
B-Yoke Shaft
C-Maximum Clockwise Rotation
D-Knife Section
