Adjusting Hold Down Clips

CAUTION: Always lower reel lift safety stops when working under reel.

Knife hold down clips (A) must keep sections from lifting off guards (E) and permit knife (C) to slide without binding.

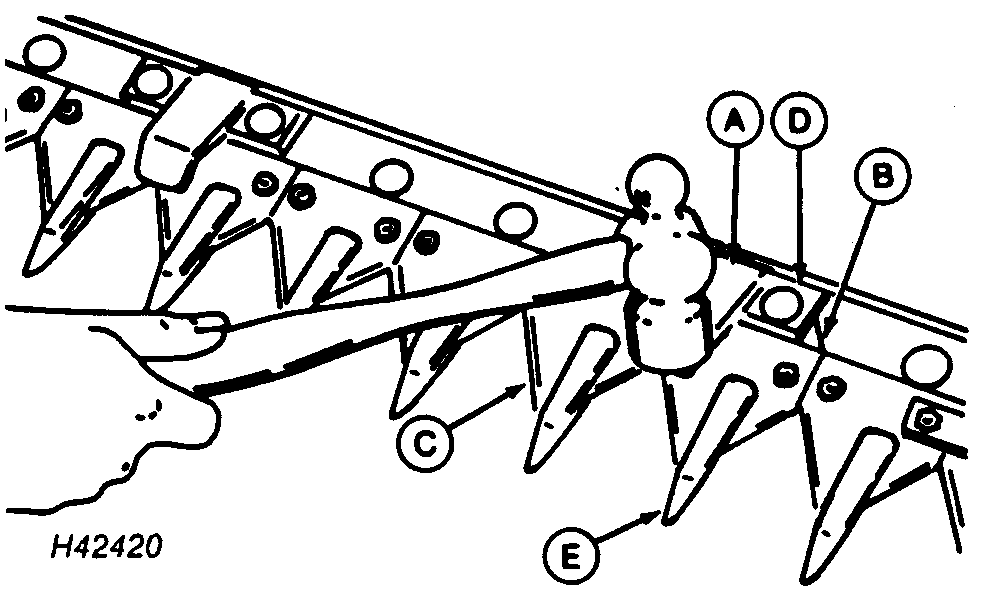

1. Set clips (A) after guards (E) are aligned.

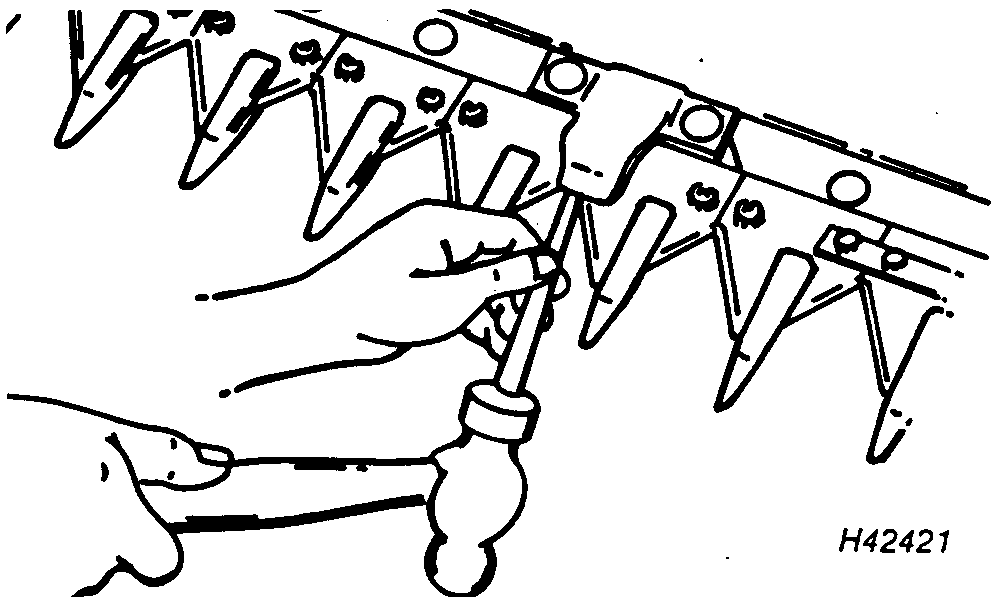

2. Tap clips (A) up or down until knife (C) will slide under clips without binding.

3. After setting clips (A), see that knife (C) works freely.

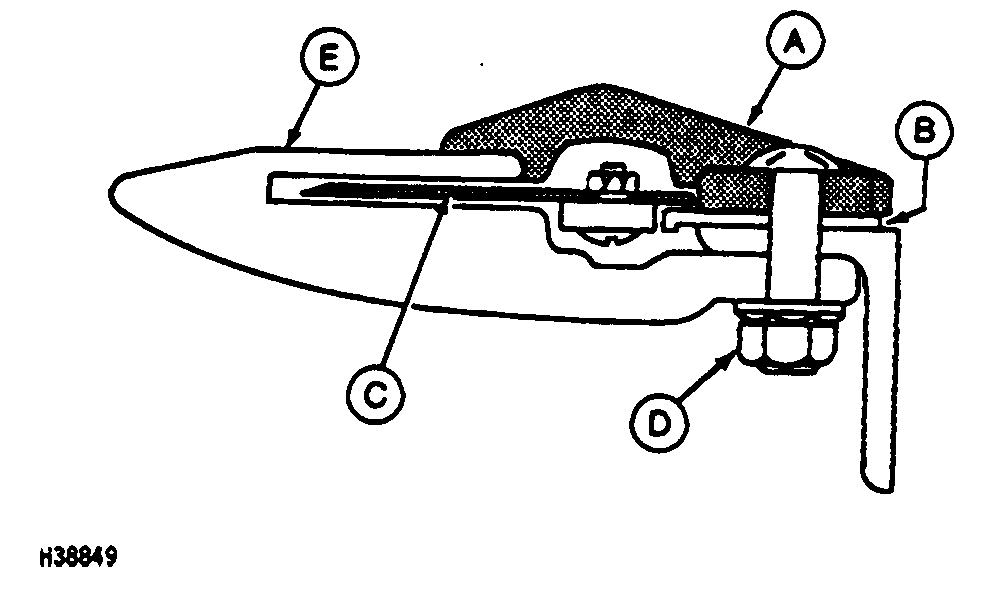

A-Knife Hold-Down Clip
B-Wearing Plate
C-Knife
D-Round Head Bolt and Nut
E-Knife Guard

900CP,SE,F -19-18AUG97-1/1
